Curve

Finish

Painted metal green RAL 6017, white RAL 9010, pigeon blue RAL 5014, ivory RAL 1015.
Other colours and combination on request.
Diffuser in matt acrlylic. Incorporated LED module. Mains dimmable or DALI.

LED info

System power 10W. Luminaire luminous flux see productspecification.
CCT 3000K. SDCM 3. CRI >90. L70 B10 50.000h.

Installation

In ceiling hook.

Connection

Terminal block in ceiling cup.

Design

Front Design 2019.

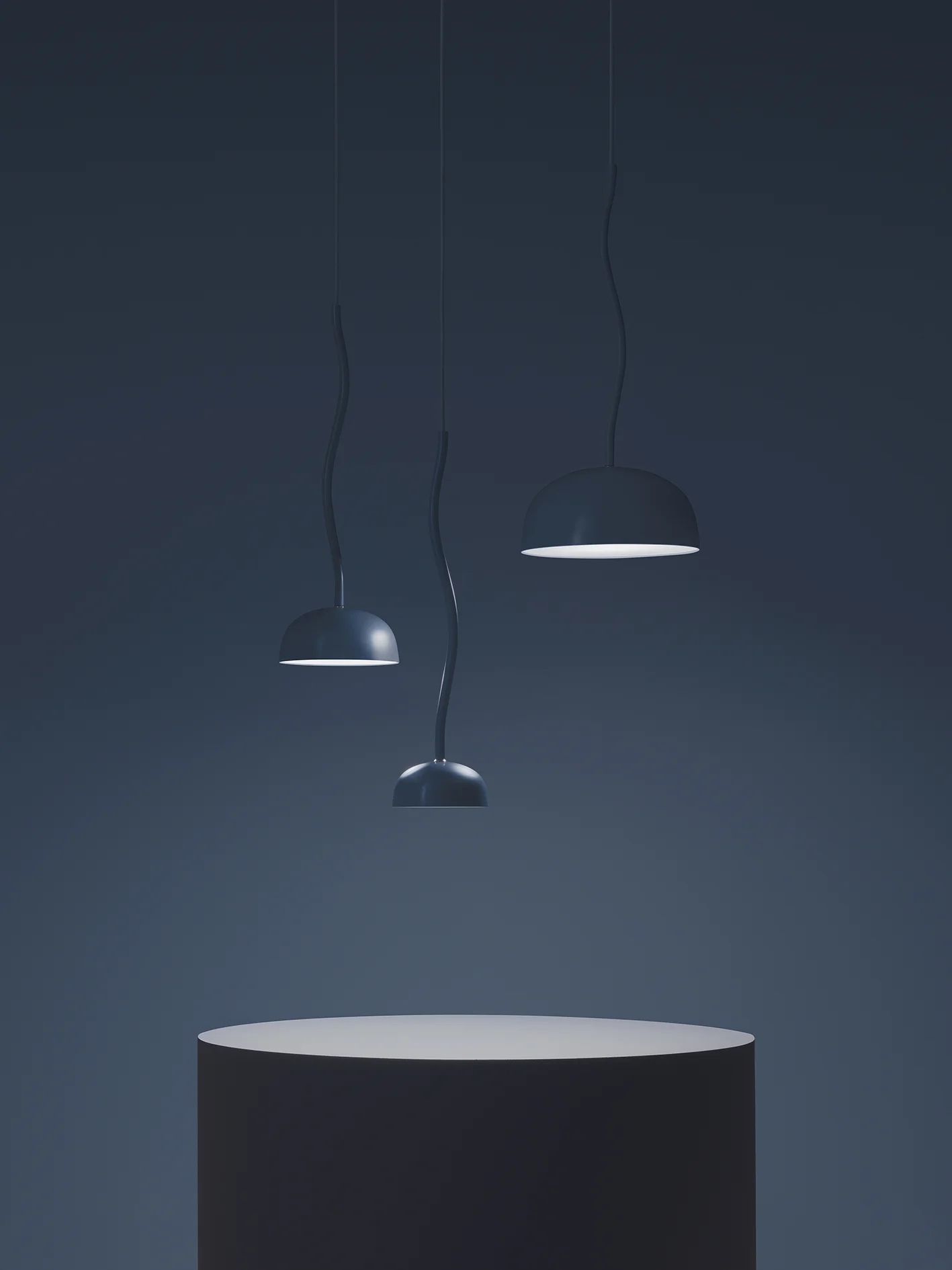

PRODUCT SPECIFICATION Designed for the newly renovated Art Library at Nationalmuseum, Curve borrows its personality from the classical library lamp. In this transformed interpretation, the suite of pendants, floor and table lamps become calming, languid figures. In traditional green and white glass or with metal shades in pigeon-blue, ivory, white or green. With inbuilt LED module. Shades in diameter 150, 200, 300 mm.
POWER LUMINAIRE FLUX D/mm Color base Shade ART.
With incorporated LED module 230V, dimable.
10W 710LM 150 White White metall 16013101-30
10W 774LM 200 White White metall 16013301-30
10W 783LM 300 White White metall 16013501-30
10W 710LM 150 Green Green metall 16013112-30
10W 774LM 200 Green Green metall 16013312-30
10W 783LM 300 Green Green metall 16013512-30
10W 710LM 150 Pigeon blue Pigeon blue 16013108-30
10W 749LM 200 Pigeon blue Pigeon blue 16013308-30
10W 783LM 300 Pigeon blue Pigeon blue 16013508-30
10W 710LM 150 Ivory Ivory 16013146-30
10W 749LM 200 Ivory Ivory 16013346-30
10W 783LM 300 Ivory Ivory 16013546-30
With incorporated LED module DALI. Not possible to connect to SwitchDim.
10W 710LM 150 White White metall 16013101D30
10W 774LM 200 White White metall 16013301D30
10W 783LM 300 White White metall 16013501D30
10W 710LM 150 Green Green metall 16013112D30
10W 774LM 200 Green Green metall 16013312D30
10W 783LM 300 Green Green metall 16013512D30
10W 710LM 150 Pigeon blue Pigeon blue 16013108D30
10W 774LM 200 Pigeon blue Pigeon blue 16013308D30
10W 783LM 300 Pigeon blue Pigeon blue 16013508D30
10W 710LM 150 Ivory Ivory 16013146D30
10W 774LM 200 Ivory Ivory 16013346D30
10W 783LM 300 Ivory Ivory 16013546D30
