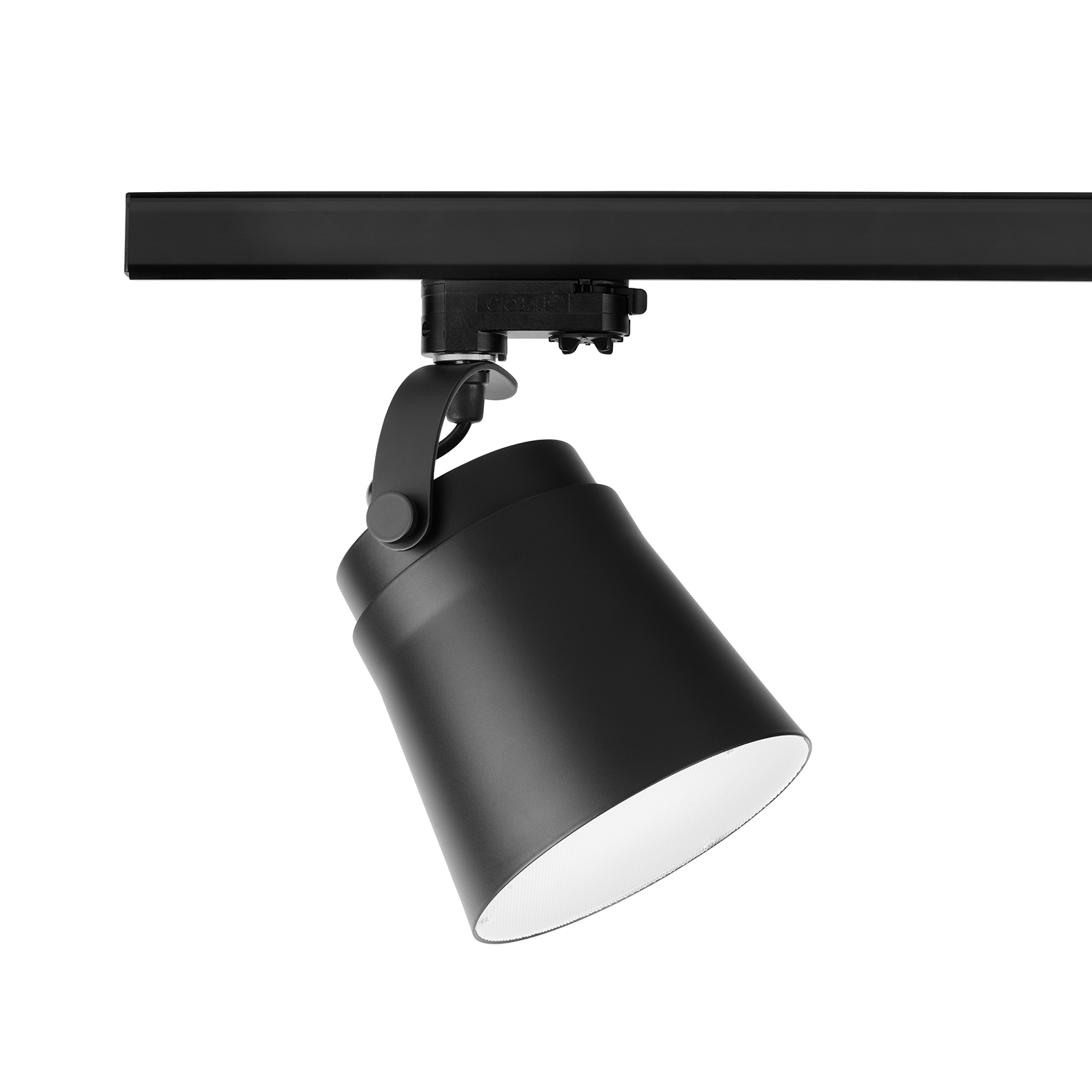

Ginza Single
Finish
Painted metal and aluminum. White RAL 9010, black RAL 9005, orange RAL 4030S. Diffuser in microprisma. Adjustable spotlight. Other colours on request.
LED info
System power 10WW. Luminaire Luminous Flux 620LM. CCT 3000K. SDCM 3. CRI >80
Installation
In ceiling or on wall.
Connection
Terminal block 3x2,5mm2. Dimmable 5*4mm2.
Design
Thomas Bernstrand 2018.
| POWER/LUMINAIRE FLUX | INSTALLATION | KELVIN | CRI | COLOUR | ART. |
|---|---|---|---|---|---|
| 10W/620LM | 3-phase adaptor | 3000K | >80 | White | 8432-1-01-30 |
| 10W/620LM | 3-phase adaptor | 3000K | >80 | White | 8432-1-01D30 |
| 10W/620LM | 3-phase adaptor | 3000K | >80 | Black | 8432-1-06-30 |
| 10W/620LM | 3-phase adaptor | 3000K | >80 | Black | 8432-1-06D30 |
| 10W/620LM | 3-phase adaptor | 3000K | >80 | Orange | 8432-1-41-30 |
| 10W/620LM | 3-phase adaptor | 3000K | >80 | Orange | 8432-1-41D30 |
| D = Dimmable DALI or SwitchDim. |
