A.01

Finish

Painted metal. Diffuser in opal acrylic. Available with up- & downlight or downlight only. Top cover in painted metal (downlight version). Hot-dip galvanized finish has a ruff surface with visible scratches.

LED info

System power 10W. Luminaire Luminous Flux 747LM (up- & downlight) 457LM (downlight). CCT 3000K. SDCM 3. CRI>80.

Installation

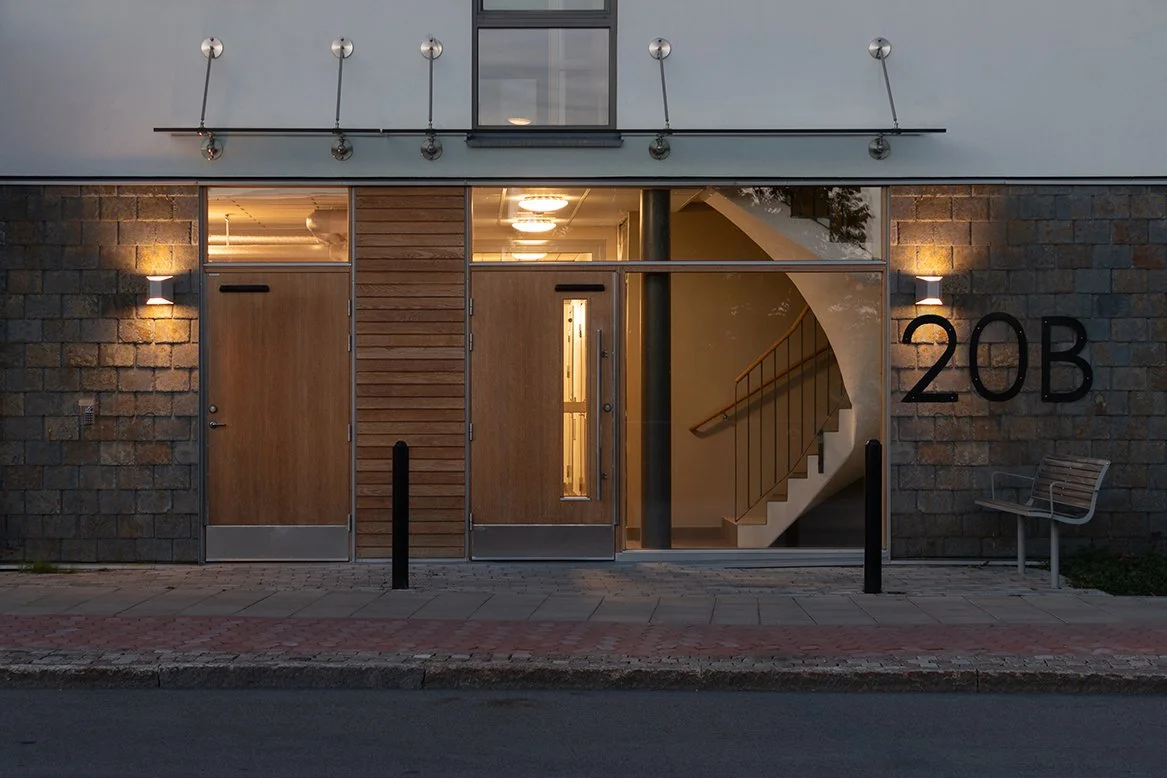

Surface mounted wall installation. Distance-piece for external mains cable available as accessory.

Connection

Terminal-block 3x4mm2.

Classification

IK 07, IP 44.

Design

Kjellander + Sjöberg.

Standard colours

Other colours on request.

Product sheet

Designer

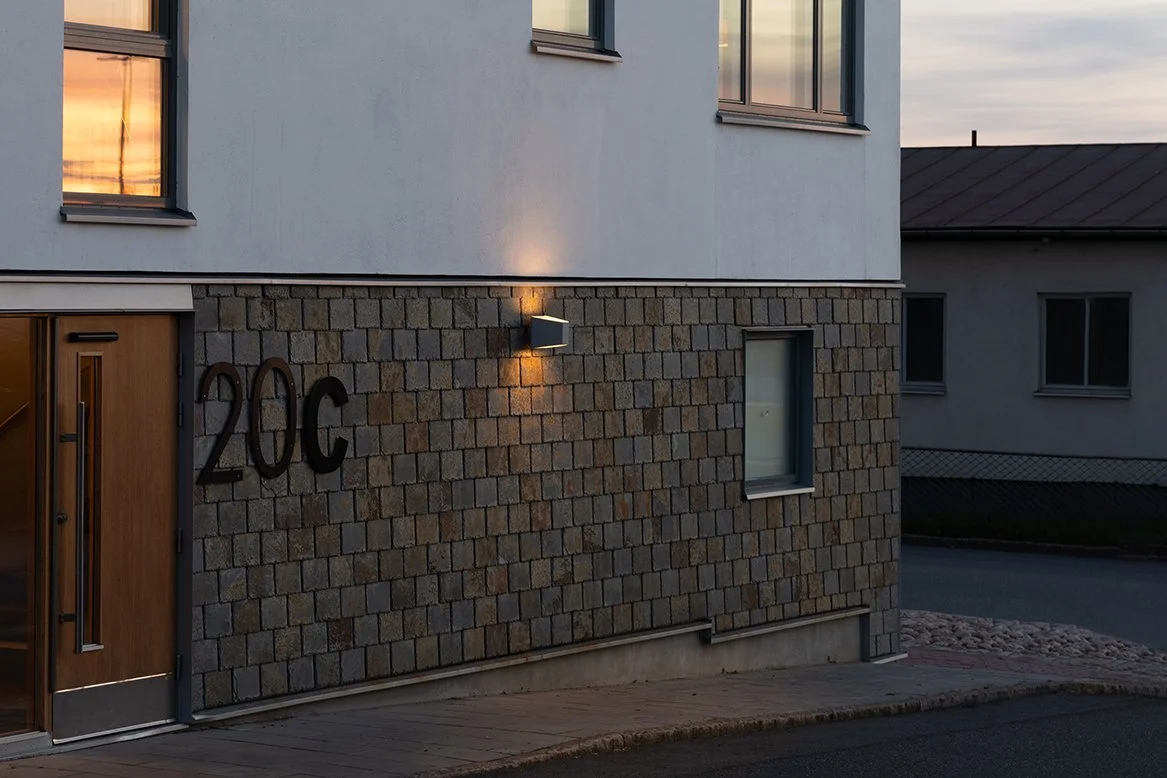

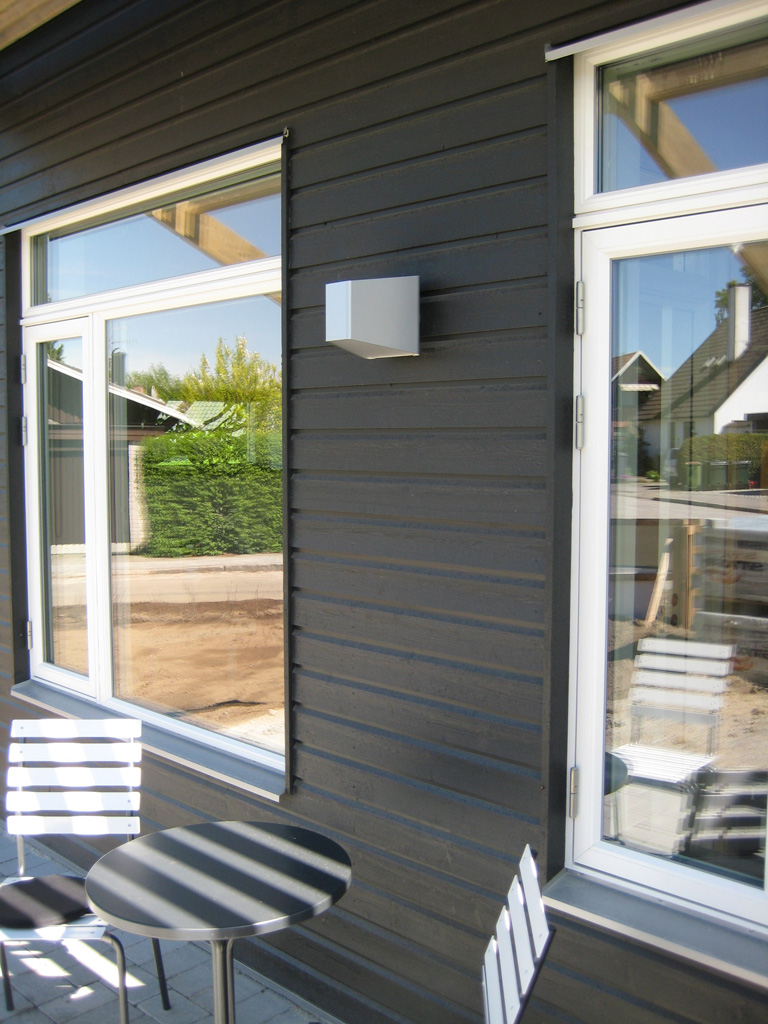

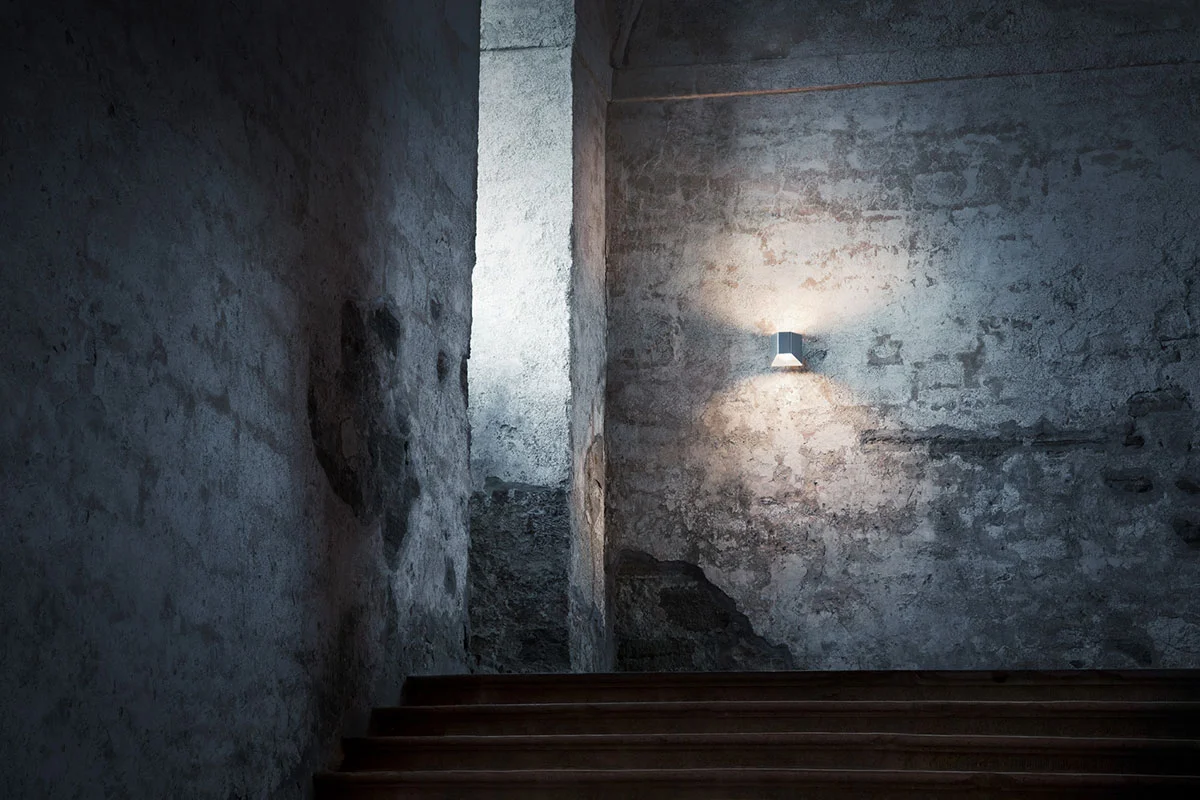

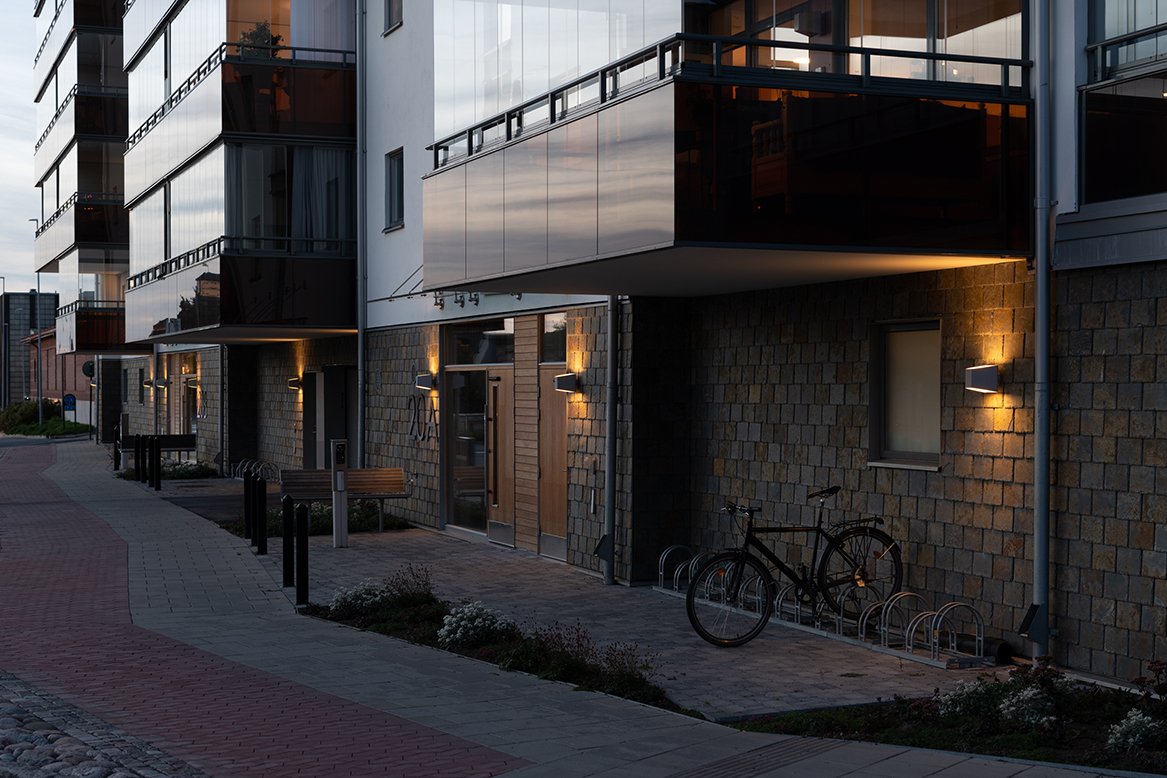

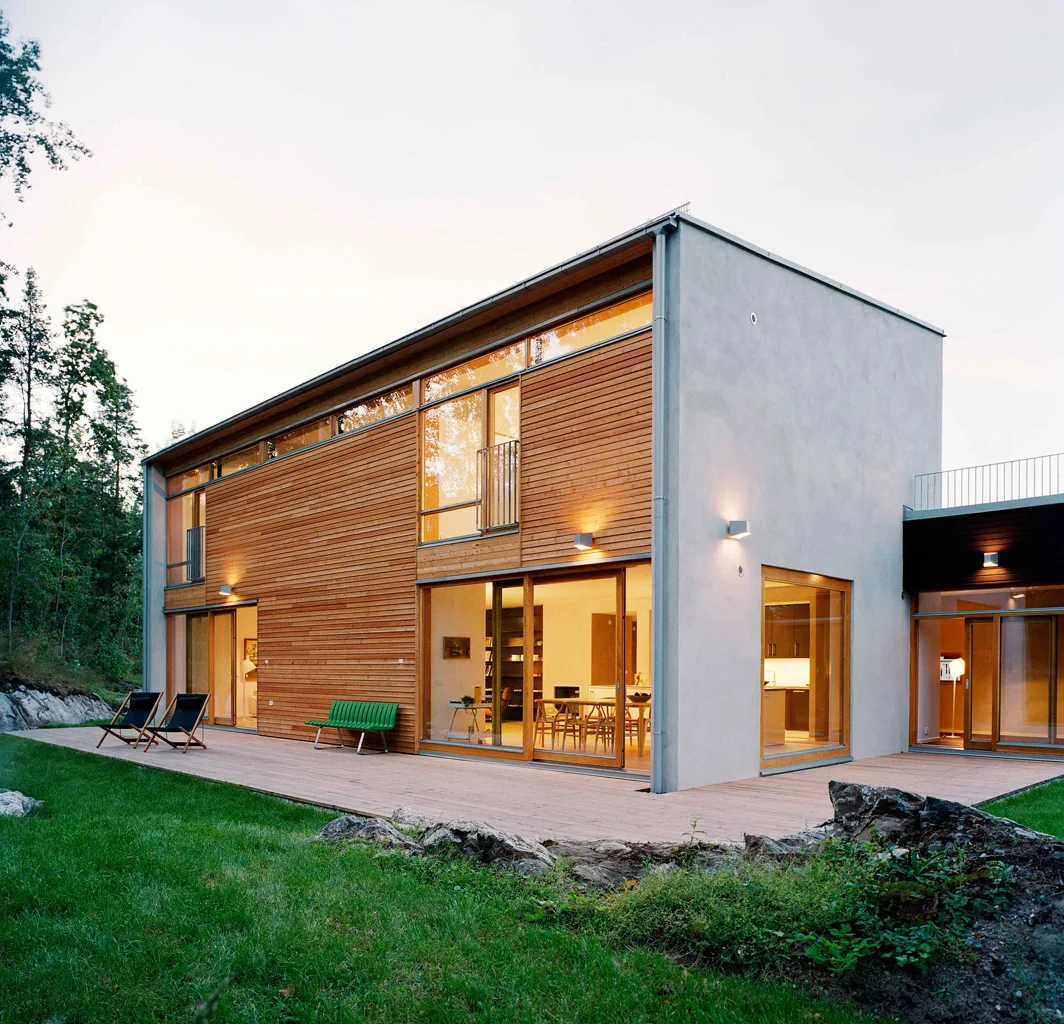

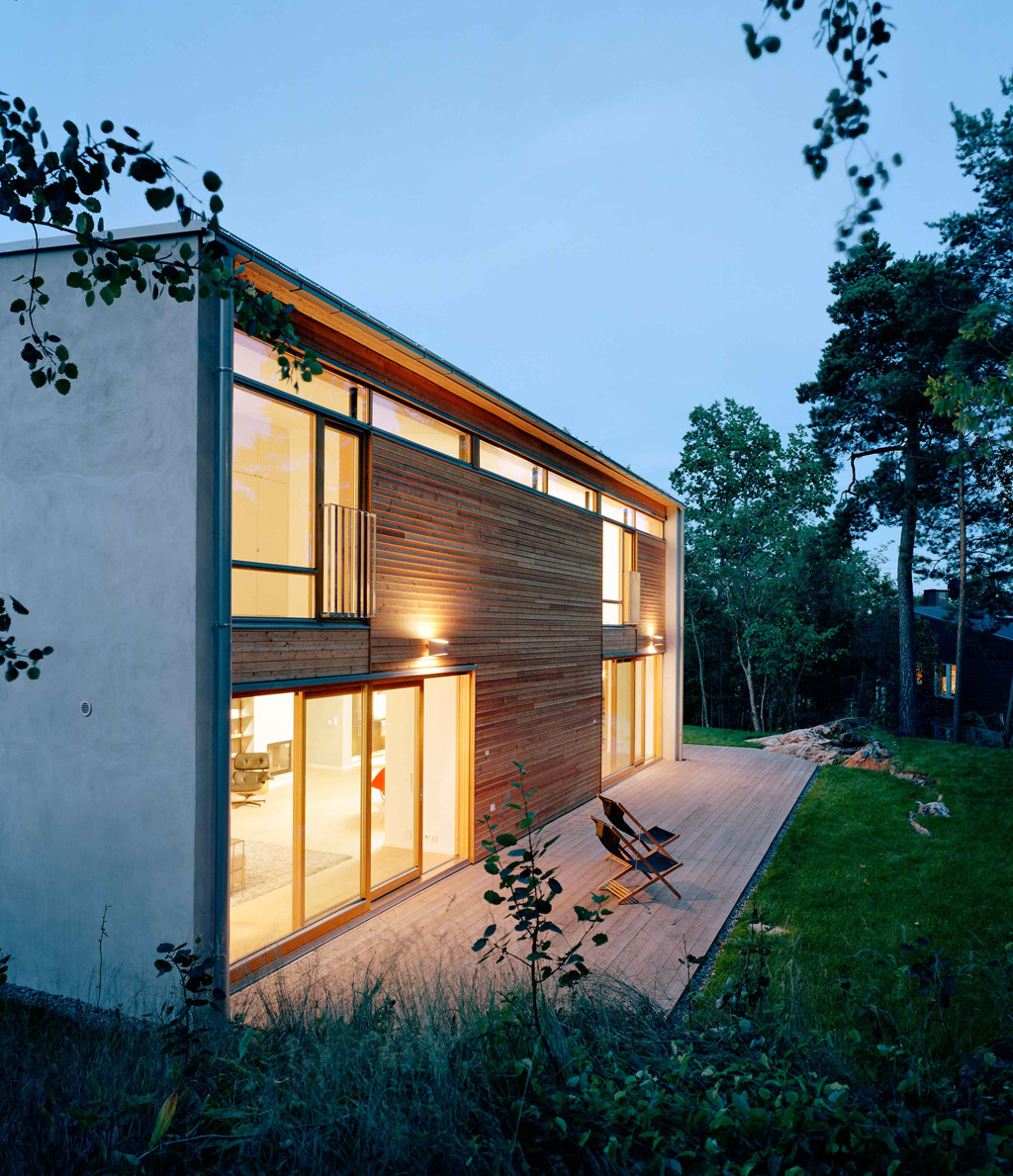

Projects


			Productspecification

				POWER LUMINAIRE
				KELVIN
				CRI
				LIGHT
				COLOUR
				ART.

					LED

					10W 747LM
					3000K
					>80
					Up & down
					Grey
					3049-1-10

					10W 747LM
					3000K
					>80
					Up & down
					Galvanized
					3049-1-83

					Max 53W/E27

					Up & down
					Grey
					3051-1-10

					Max 53W/E27

					Up & down
					Galvanized
					3051-1-83

					10W 457LM
					3000K
					>80
					Downlight
					Grey
					12040110-30

					10W 457LM
					3000K
					>80
					Downlight
					Galvanized
					12040183-30

					Max 53W/E27

					Downlight
					Grey
					12041110

					Max 53W/E27

					Downlight
					Galvanized
					12041183

Productspecification
POWER LUMINAIRE	KELVIN	CRI	LIGHT	COLOUR	ART.
LED
10W 747LM	3000K	>80	Up & down	Grey	3049-1-10
10W 747LM	3000K	>80	Up & down	Galvanized	3049-1-83
Max 53W/E27			Up & down	Grey	3051-1-10
Max 53W/E27			Up & down	Galvanized	3051-1-83
10W 457LM	3000K	>80	Downlight	Grey	12040110-30
10W 457LM	3000K	>80	Downlight	Galvanized	12040183-30
Max 53W/E27			Downlight	Grey	12041110
Max 53W/E27			Downlight	Galvanized	12041183
