Curve Cluster XL

Finish

Diffuser in opal acrylic. Arms in painted steel. Globes in white opal glass. Textile cable. Other cable colours on request.

LED info

System power 40W. Luminaire Luminous Flux 3131LM.
CCT 3000K. SDCM 3. CRI>90.
Alternative version: E27-socket, max 10W.

Installation

Suspended through wire.

Connection

2,3 m textile cable with DCL-plug or terminal block in ceiling cup.

Classification

IP 20.

Design

Front Design 2026.

Standard colours

Other colours on request. Copper = Painted copper finish with a clear coating.

Product sheet

Designer


			Product specification

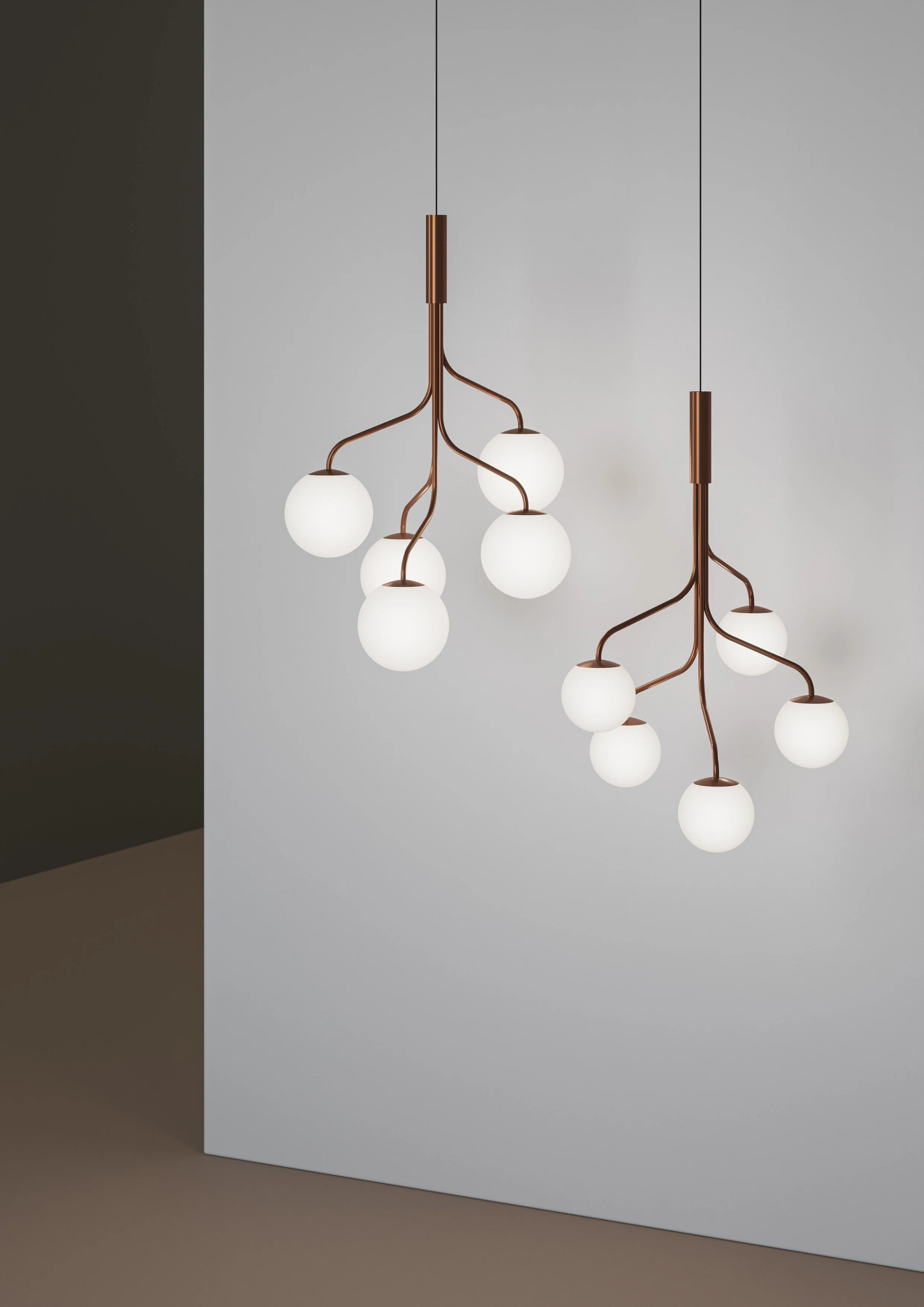

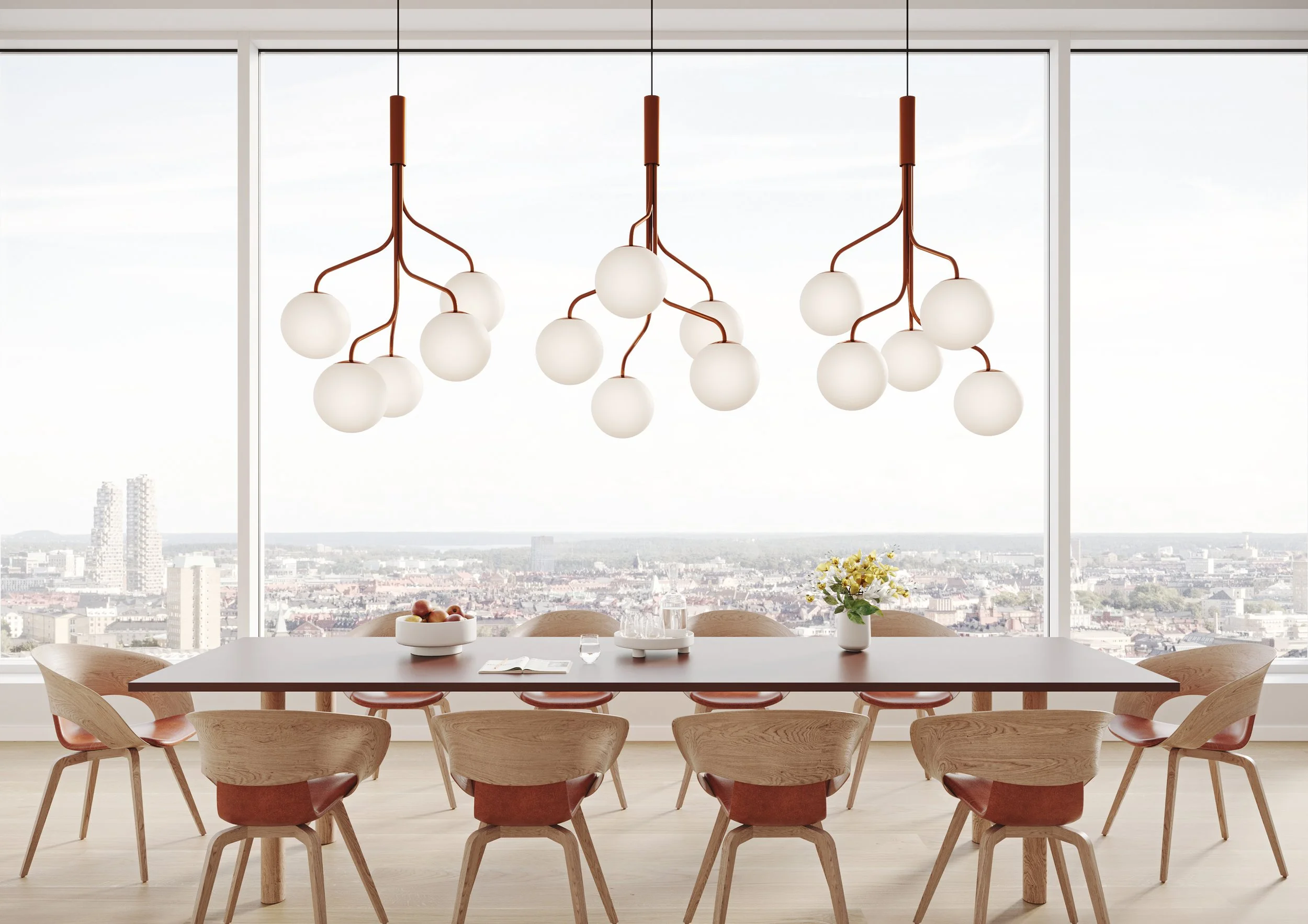

			The most recent addition to the Curve family, Curve Cluster XL, features five branches bundled together to form a pendant lamp. Curve Cluster XL can function as a standalone light or be combined with multiple pieces to create an organic chandelier. The lamp can also be customized with either lamp shades in painted metal or glass globes in different sizes.

				POWER
				LUMINAIRE FLUX
				KELVIN
				CRI
				COLOUR
				GLOBES Ø
				ART.

					5xE27 max 10W

					3000K
					>90
					White
					200mm
					16060101

					5x8W
					3131LM
					3000K
					>90
					White
					200mm
					16060101D30

					5xE27 max 10W

					3000K
					>90
					Copper finish
					200mm
					16060178

					5x8W
					3131LM
					3000K
					>90
					Copper finish
					200mm
					16060178D30

					5xE27 max 10W

					3000K
					>90
					White
					250mm
					16060301

					5x8W
					3131LM
					3000K
					>90
					White
					250mm
					16060301D30

					5xE27 max 10W

					3000K
					>90
					Copper finish
					250mm
					16060378

					5x8W
					3131LM
					3000K
					>90
					Copper finish
					250mm
					16060378D30

					D: Dimable through DALI
