Daikanyama wire

Finish

Shade in painted aluminum. Diffuser in matt glass.

LED info

System power 13W. Luminaire Luminous Flux 979LM. CCT 3000K.
SDCM 3. CRI >80. L80, 80.000h. 8252 - Excluding light source (see product specification).
8265 - Including dimable LED E27 light source (se product specification).

Installation

On wire, max 3 mm.

Connection

Snap-in terminal block 5x4mm2. Double conduit entry.

Classification

IP 20.

Design

Thomas Bernstrand 2013.

Standard colours

Other colours on request.

Product sheet

designer

project


				Product specification

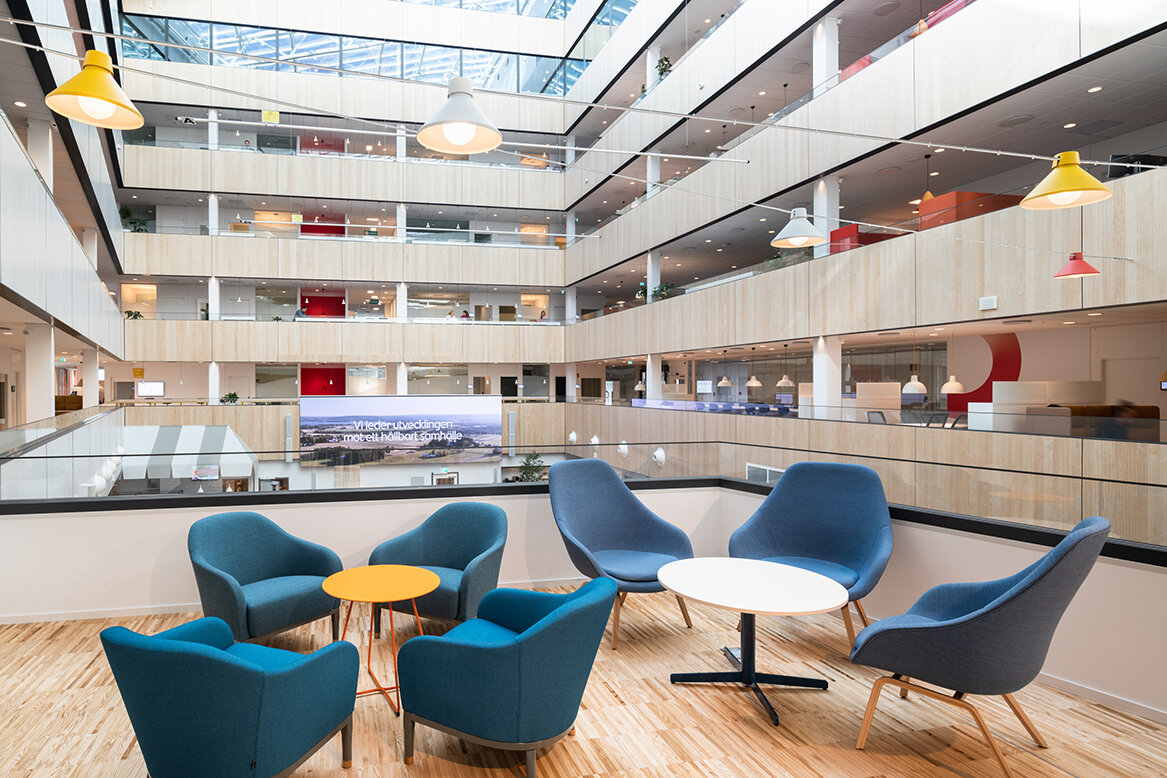

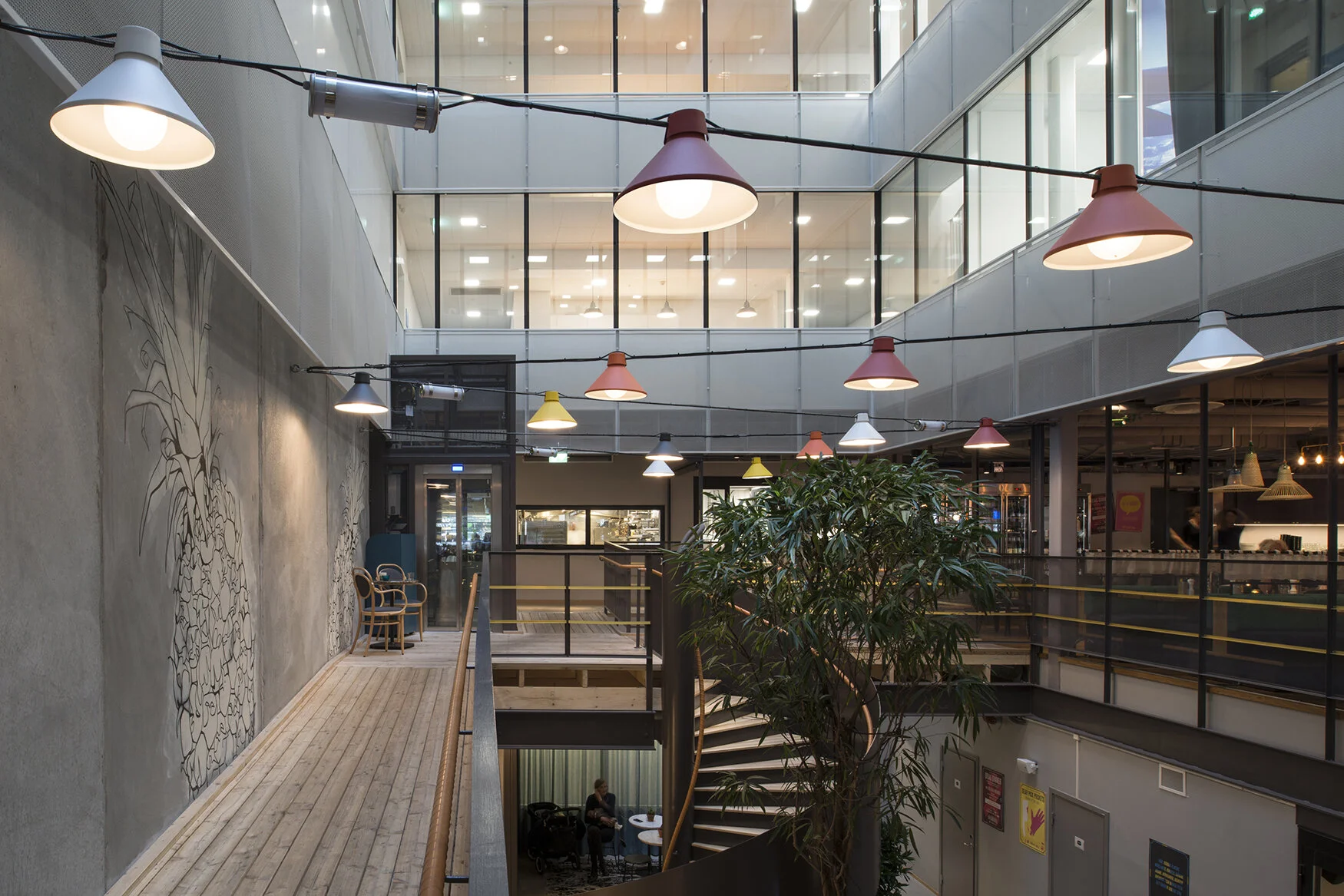

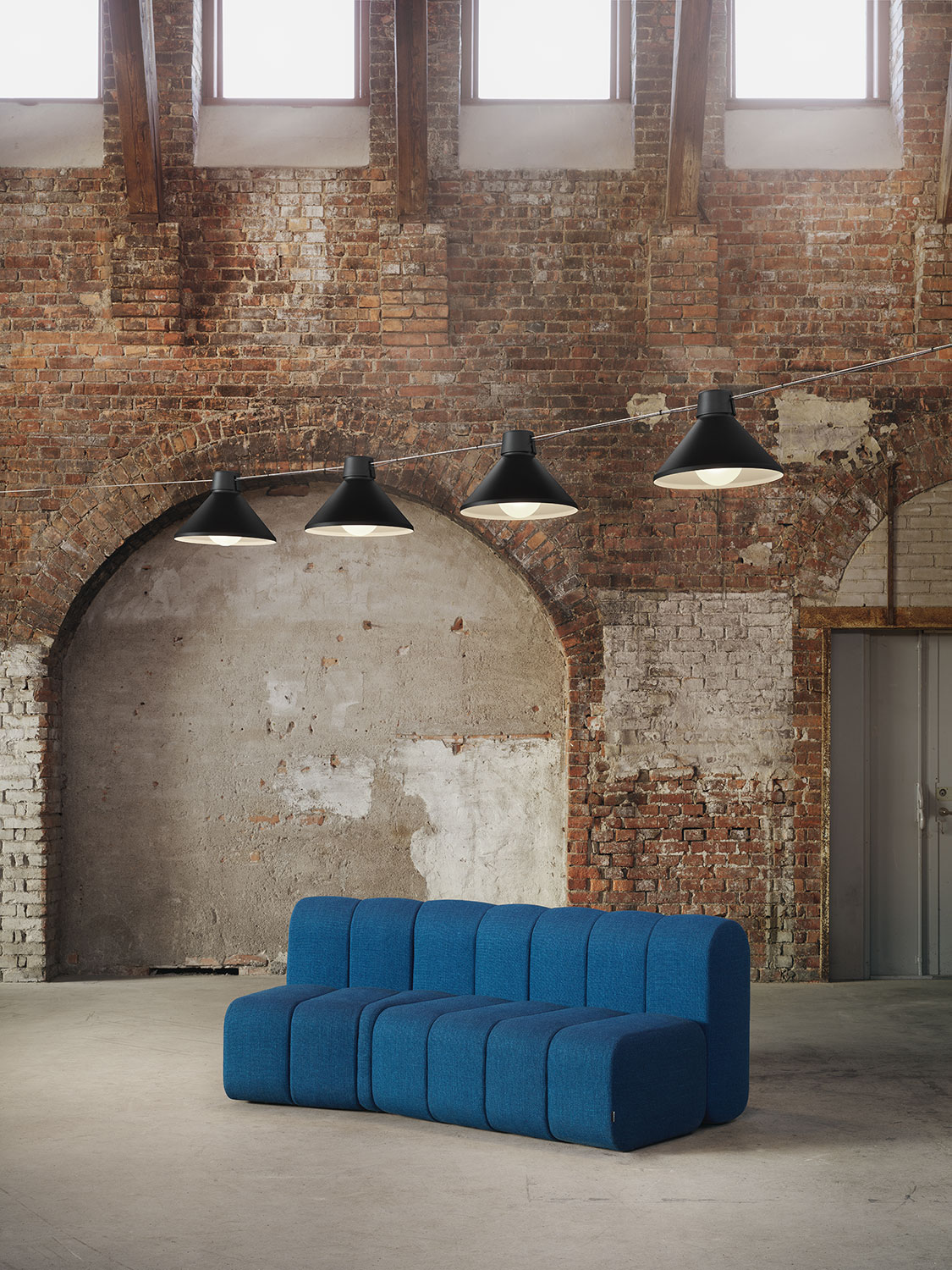

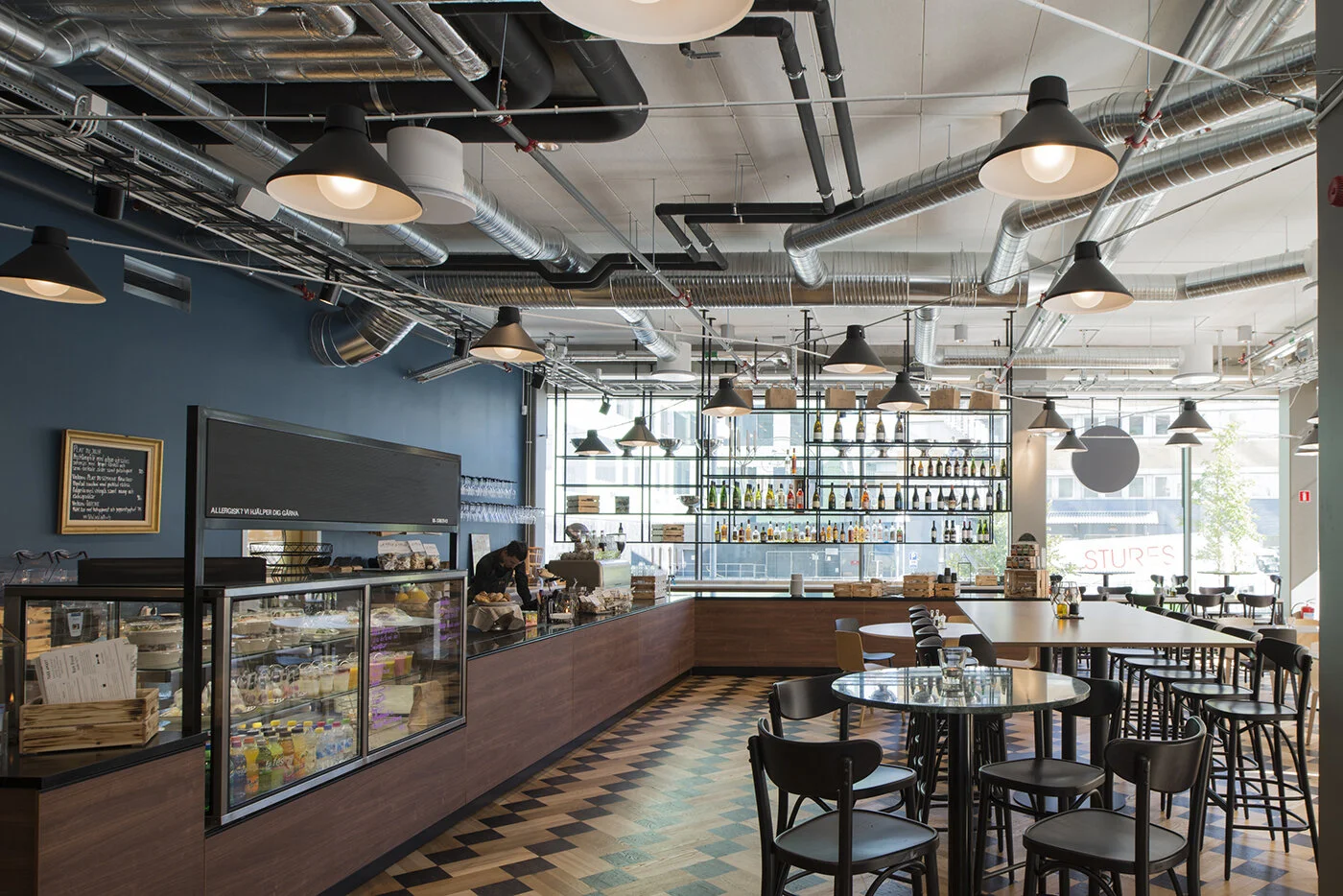

				The Tokyo district of the same name inspired DAIKANYAMA; the pendant and cables create spatiality on a pleasant scale for both large and small areas. In zigzag, stricter or even slightly chaotic configurations between walls, ceilings and poles, with the electric cable running along the wire from one to the next. There are endless possibilities for this playful pendant.

				POWER/LUMINAIRE FLUX
				KELVIN
				CRI
				COLOR
				ART.

					E27 socket excluding light source

					E27/Max 10W
					-
					-
					White
					8252-1-01

					E27/Max 10W
					-
					-
					Black
					8252-1-06

					E27/Max 10W
					-
					-
					Red
					8252-1-07

					E27/Max 10W
					-
					-
					Yellow
					8252-1-14

					E27/Max 10W
					-
					-
					Orange
					8252-1-41

					E27 socket including dimmable LED light source

					E27/LED/9W/528LM
					2700
					>80
					White
					8265-1-01

					E27/LED/9W/528LM
					2700
					>80
					Black
					8265-1-06

					E27/LED/9W/528LM
					2700
					>80
					Red
					8265-1-07

					E27/LED/9W/528LM
					2700
					>80
					Yellow
					8265-1-14

					E27/LED/9W/528LM
					2700
					>80
					Orange
					8265-1-41

					With built in LED module and driver. Possible with Dali dim option

					13W/LED/979LM
					3000
					>80
					White
					12050101-30

					13W/LED/979LM
					3000
					>80
					White
					12050101D30

					13W/LED/979LM
					3000
					>80
					Black
					12050106-30

					13W/LED/979LM
					3000
					>80
					Black
					12050106D30

					13W/LED/979LM
					3000
					>80
					Yellow
					12050114-30

					13W/LED/979LM
					3000
					>80
					Yellow
					12050114D30

					13W/LED/979LM
					3000
					>80
					Orange
					12050141-30

					13W/LED/979LM
					3000
					>80
					Orange
					12050141D30

					Dimmable with DALI or SwitchDim

					Accessories

					Wire 1 meter

					98255101

					Turnbuckle

					98255201

					French screw with loop

					98255301

					Wire lock

					98255401

Product specification The Tokyo district of the same name inspired DAIKANYAMA; the pendant and cables create spatiality on a pleasant scale for both large and small areas. In zigzag, stricter or even slightly chaotic configurations between walls, ceilings and poles, with the electric cable running along the wire from one to the next. There are endless possibilities for this playful pendant.
POWER/LUMINAIRE FLUX	KELVIN	CRI	COLOR	ART.
E27 socket excluding light source
E27/Max 10W	-	-	White	8252-1-01
E27/Max 10W	-	-	Black	8252-1-06
E27/Max 10W	-	-	Red	8252-1-07
E27/Max 10W	-	-	Yellow	8252-1-14
E27/Max 10W	-	-	Orange	8252-1-41
E27 socket including dimmable LED light source
E27/LED/9W/528LM	2700	>80	White	8265-1-01
E27/LED/9W/528LM	2700	>80	Black	8265-1-06
E27/LED/9W/528LM	2700	>80	Red	8265-1-07
E27/LED/9W/528LM	2700	>80	Yellow	8265-1-14
E27/LED/9W/528LM	2700	>80	Orange	8265-1-41
With built in LED module and driver. Possible with Dali dim option
13W/LED/979LM	3000	>80	White	12050101-30
13W/LED/979LM	3000	>80	White	12050101D30
13W/LED/979LM	3000	>80	Black	12050106-30
13W/LED/979LM	3000	>80	Black	12050106D30
13W/LED/979LM	3000	>80	Yellow	12050114-30
13W/LED/979LM	3000	>80	Yellow	12050114D30
13W/LED/979LM	3000	>80	Orange	12050141-30
13W/LED/979LM	3000	>80	Orange	12050141D30
Dimmable with DALI or SwitchDim
Accessories
Wire 1 meter				98255101
Turnbuckle				98255201
French screw with loop				98255301
Wire lock				98255401
