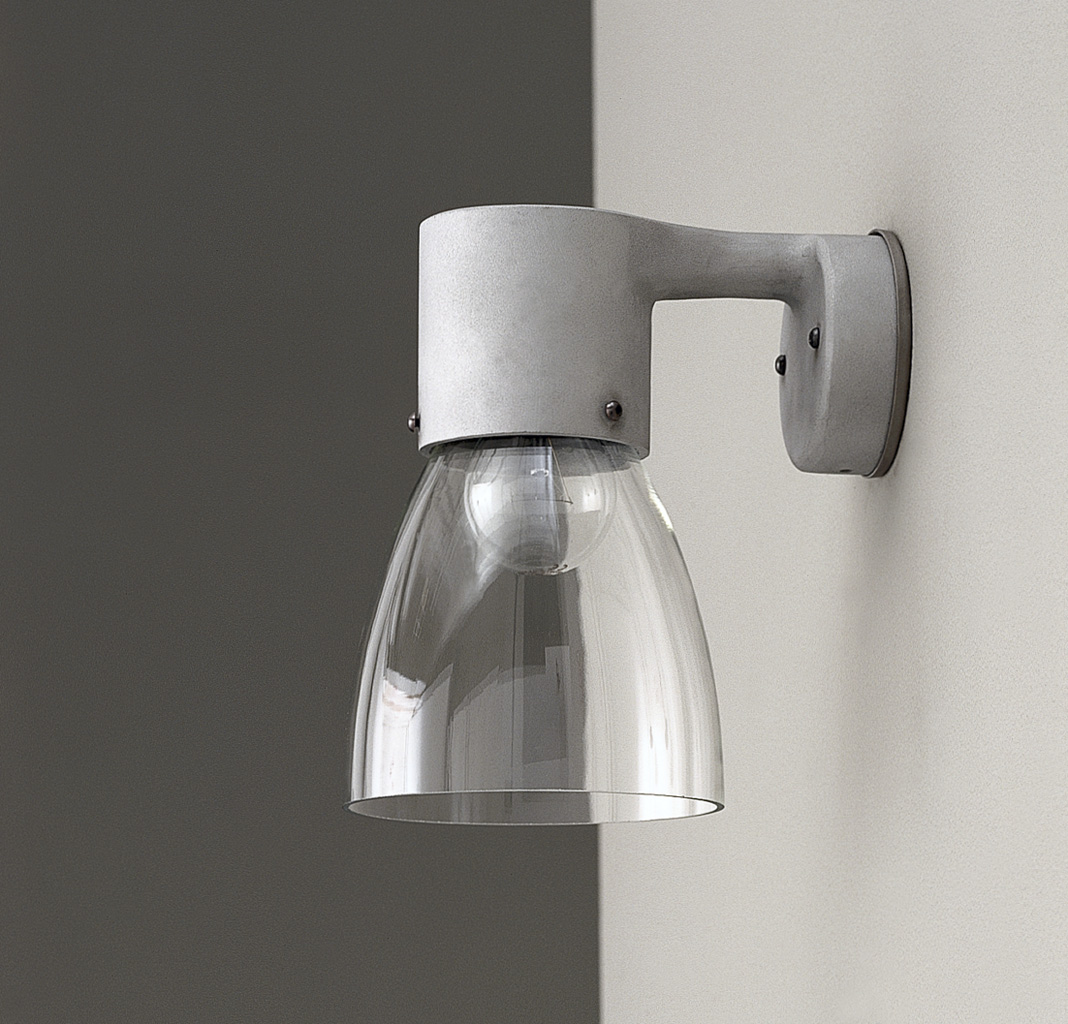

Droppen

Finish

Die-casted aluminum. Shade in clear or opal glass.

LED info

E27-socket. Max 20W.

Installation

Surface mounted wall installation. Distance-piece for external mains cable available as accessory.

Connection

Terminal block 3x4mm2.

Classification

IK 06, IP 23.

Design

Thomas Sandell.

Standard colours

Other colours on request.

Product sheet

Designer


				Product specification
				On wall Die casted aluminium. Shade in clear or opal glass. Incandescent models have an open shade. Terminal block 3x4mm². Distance-piece for external mains cable available as accessory. Not suitable for installation where lights may be exposed to corrosion by sea water and sea air.

					W
				SHADE
				KG
				ART.

					E27/max 20W
					Clear glass
					1,2
					4120-1-85

					E27/max 20W
					Opal glass
					1,2
					4220-1-85

					Accessories

					Distance-piece for external mains cable

					94140-1-85

Product specification On wall Die casted aluminium. Shade in clear or opal glass. Incandescent models have an open shade. Terminal block 3x4mm². Distance-piece for external mains cable available as accessory. Not suitable for installation where lights may be exposed to corrosion by sea water and sea air.
W	SHADE	KG	ART.
E27/max 20W	Clear glass	1,2	4120-1-85
E27/max 20W	Opal glass	1,2	4220-1-85
Accessories
Distance-piece for external mains cable			94140-1-85
