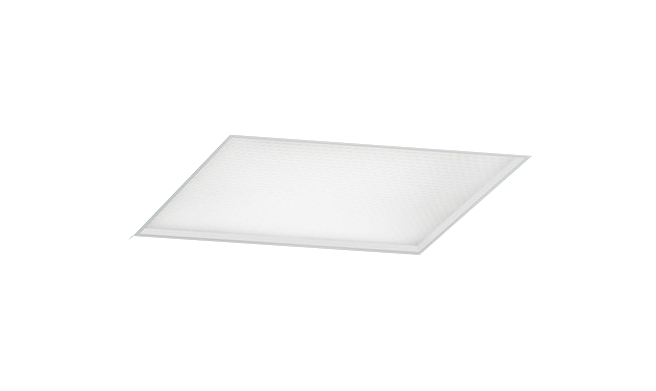

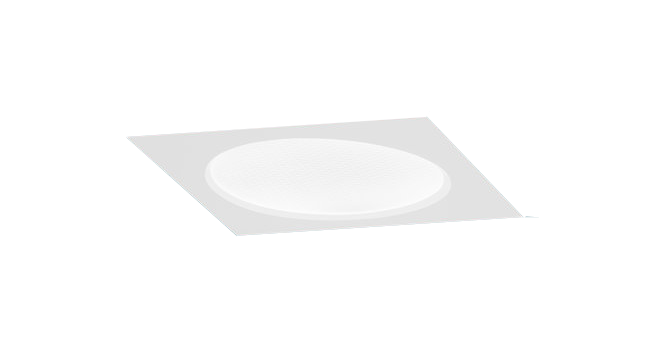

Halftone - Recessed

Halftone, as the name implies, is inspired by the printing technique, which here creates pattern and depth in the two-dimensional surface and contributes to variation and structure. 595 x 595 mm.

Finish

Painted metal. White RAL 9010 or grey RAL 7030 , other colours on request.
Diffusser in halftoned acrylic.

LED info

System power: 32W. Luminaire Luminous Flux: 3740LM/Square opening or 3166LM/round opening. CCT 3000K or 4000K. SDCM 3. CRI <80.

Installation

Recessed in falce T-profile ceiling. Fits both hidden and visible T-profile ceilings.

Connection

Terminalblock 5x4 mm2.

Design

Note Design Studio 2018.




Produktbeskrivning
W Kelvin Colour ART.
LED 3740LM/32W 3000K White 8380-1-01
LED 3740LM/32W 3000K White 8380-1-01HFF
LED 3740LM/32W 3000K Grey 8380-1-11
LED 3740LM/32W 3000K Grey 8380-1-11HFF
LED 3994LM/32W 4000K White 8381-1-01
LED 3994LM/32W 4000K White 8381-1-01HFF
LED 3994LM/32W 4000K Grey 8381-1-11
LED 3994LM/32W 4000K Grey 8381-1-11HFF
HFF = Dimmable DALI or SwitchDim



Produktbeskrivning
W Kelvin Colour ART.
LED 2320LM/32W 3000K White 8375-1-01
LED 2320LM/32W 3000K White 8375-1-01HFF
LED 2320LM/32W 3000K Grey 8375-1-11
LED 2320LM/32W 3000K Grey 8375-1-11HFF
LED 2577LM/32W 4000K White 8376-1-01
LED 2577LM/32W 4000K White 8376-1-01HFF
LED 2577LM/32W 4000K Grey 8376-1-11
LED 2577LM/32W 4000K Grey 8376-1-11HFF
HFF = Dimmable DALI or SwitchDim
