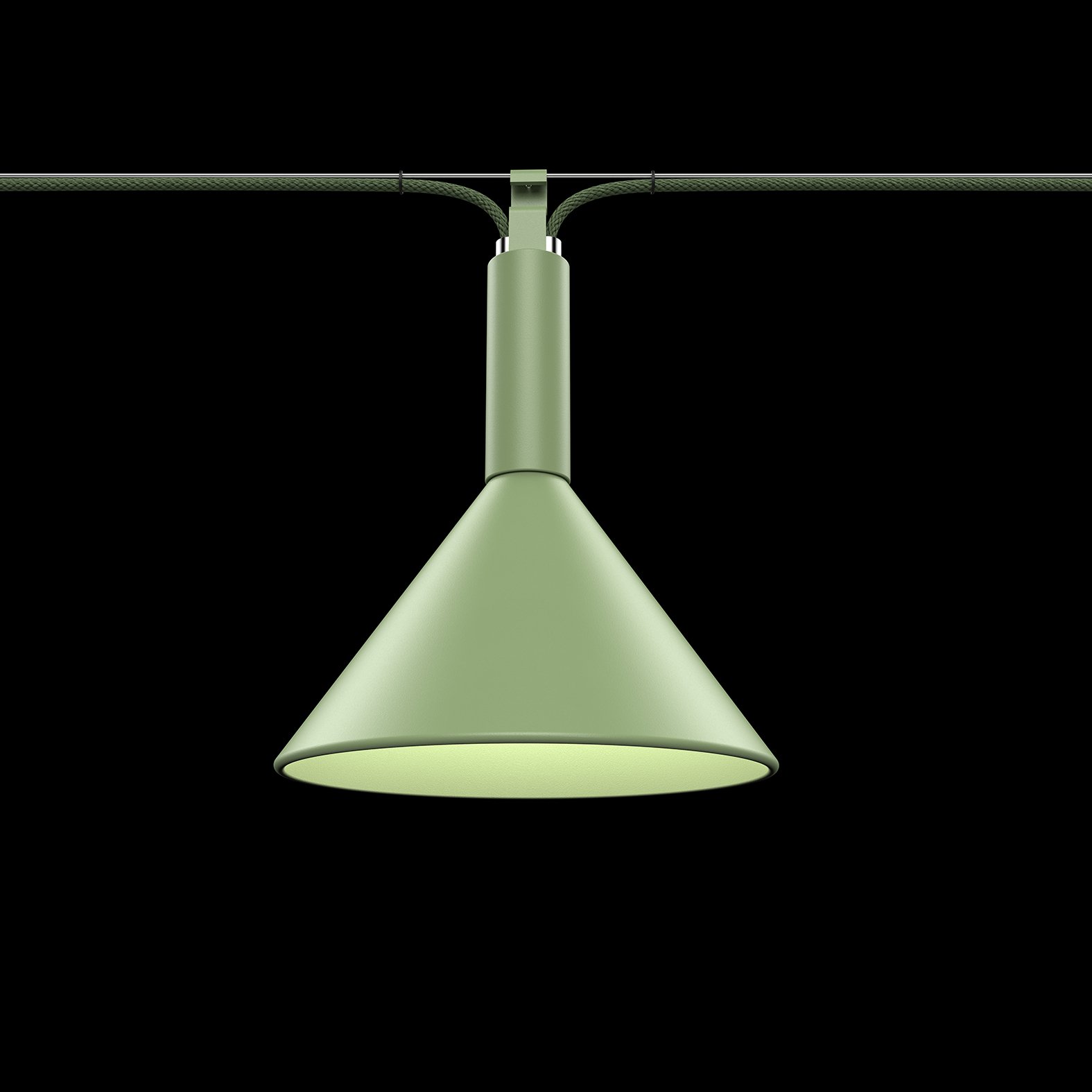

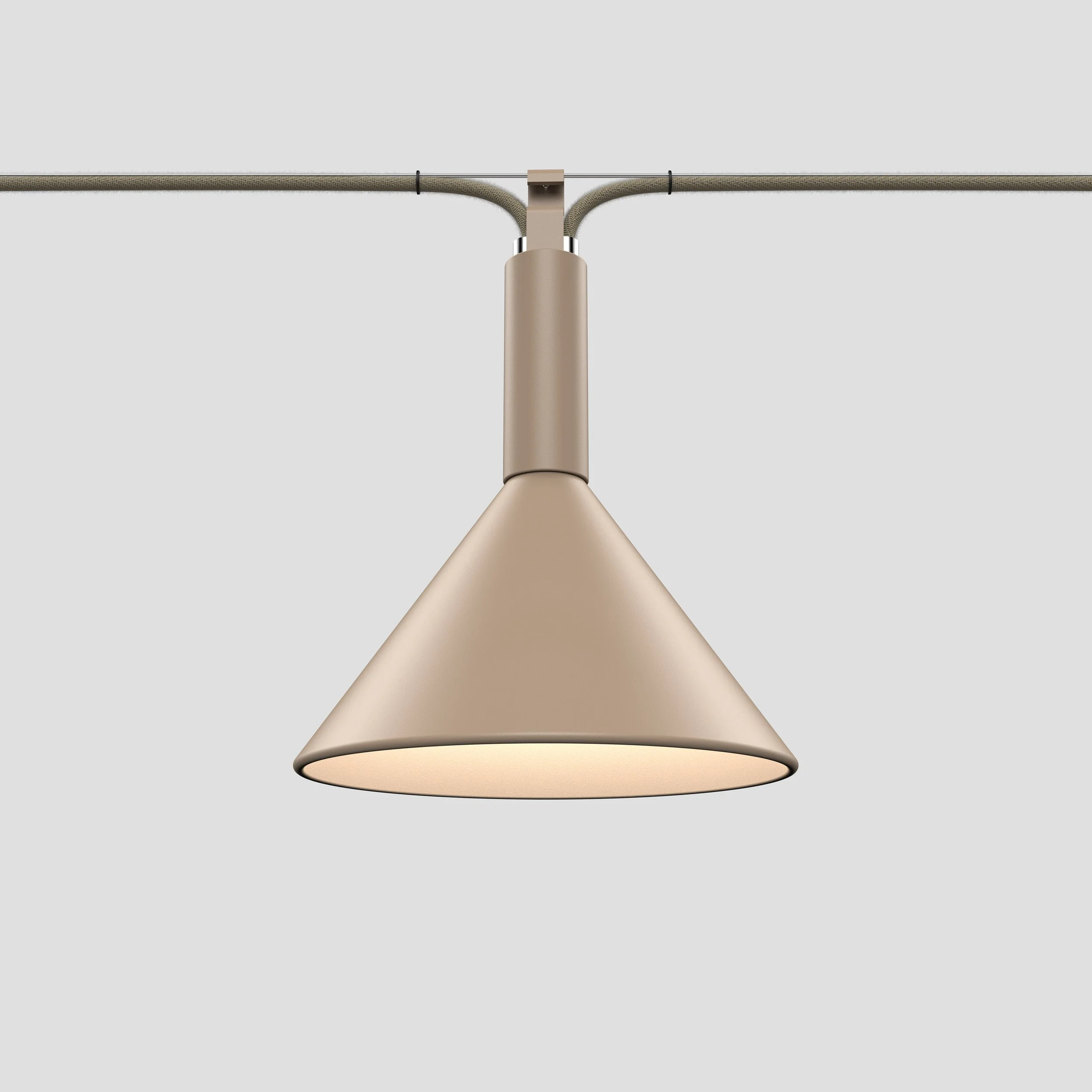

Lumo wire
Finish
Painted die-casted aluminum. Wire-fitting in stainless steel. Diffuser in matt acrylic. Micro prismatic diffuser avalible as accessory.
LED info
System power 10W. Luminaire Luminous Flux 830LM. CCT 3000K. SDCM 3. CRI>90. L70 55000H.
Retrofit GU10 alternative (see product specification).
Installation
On wire, max 3 mm.
Connection
Terminal block 5x4mm2. Double conduit entry.
Classification
IP 20.
Design
Thomas Bernstrand 2022.
Standard colours
Other colours on request.
| POWER | DIFFUSER | MODEL | KELVIN | CRI | COLOUR | ART. |
|---|---|---|---|---|---|---|
| 10W/830LM | Matt acrylic | 230V dim, On/Off | 3000 | >90 | Black | 12132106-30 |
| 10W/830LM | Matt acrylic | DALI | 3000 | >90 | Black | 12132106D30 |
| 10W/830LM | Matt acrylic | 230V dim, On/Off | 3000 | >90 | Grå/Grey | 12132111-30 |
| 10W/830LM | Matt acrylic | DALI | 3000 | >90 | Grey | 12132111D30 |
| 10W/830LM | Matt acrylic | 230V dim, On/Off | 3000 | >90 | Green | 12132112-30 |
| 10W/830LM | Matt acrylic | DALI | 3000 | >90 | Green | 12132112D30 |
| 10W/830LM | Matt acrylic | 230V dim, On/Off | 3000 | >90 | Orange | 12132141-30 |
| 10W/830LM | Matt acrylic | DALI | 3000 | >90 | Orange | 12132141D30 |
| 10W/830LM | Matt acrylic | 230V dim, On/Off | 3000 | >90 | Browngrey | 12132166-30 |
| 10W/830LM | Matt acrylic | DALI | 3000 | >90 | Browngrey | 12132166D30 |
| Including dimmable GU10 light source | ||||||
| GU10/Max 7W | Matt acrylic | 2700/3000 | >90 | Black | 12133106 | |
| GU10/Max 7W | Matt acrylic | 2700/3000 | >90 | Grey | 12133111 | |
| GU10/Max 7W | Matt acrylic | 2700/3000 | >90 | Green | 12133112 | |
| GU10/Max 7W | Matt acrylic | 2700/3000 | >90 | Orange | 12133141 | |
| GU10/Max 7W | Matt acrylic | 2700/3000 | >90 | Browngrey | 12133166 | |
| LIGHTSOURCE GU10 | ||||||
| 4,9W/GU10/355LM | 2700K | >90 | L70073 | |||
| 6,2W/GU10/515LM | 3000K | >90 | L70074 | |||
| ACCESSORIES | ||||||
| Diffuser in microprisma, | ||||||
| only possible in LED models | 912130101 |
