Pathfinder

Finish

Painted casted aluminum. Diffuser in microprisma. Symmetrical or asymmetrical options. Different pole heights on request.

LED info

System power 10W. Luminaire luminous flux 430LM (symmetric), 480LM (asymmetric). CCT 3000K. SDCM 3. CRI>90. L70 B10 50.000h.

Installation

In buried foundation D 76 mm or with ground plate for surface mounting. Minimum height with one luminaire head: 600 mm above ground. Possible to mount up to 3 extra luminaire heads. Available with an extra head equipped with electrical socket type F max 2000W, see product sheet for information.

Connection

Terminal block 2x4 x10mm2.

Classification

IK 10, IP 65.

Design

Kauppi & Kauppi 2019.

Standard colours

Other colours on request.

Product sheet


			Productspecification

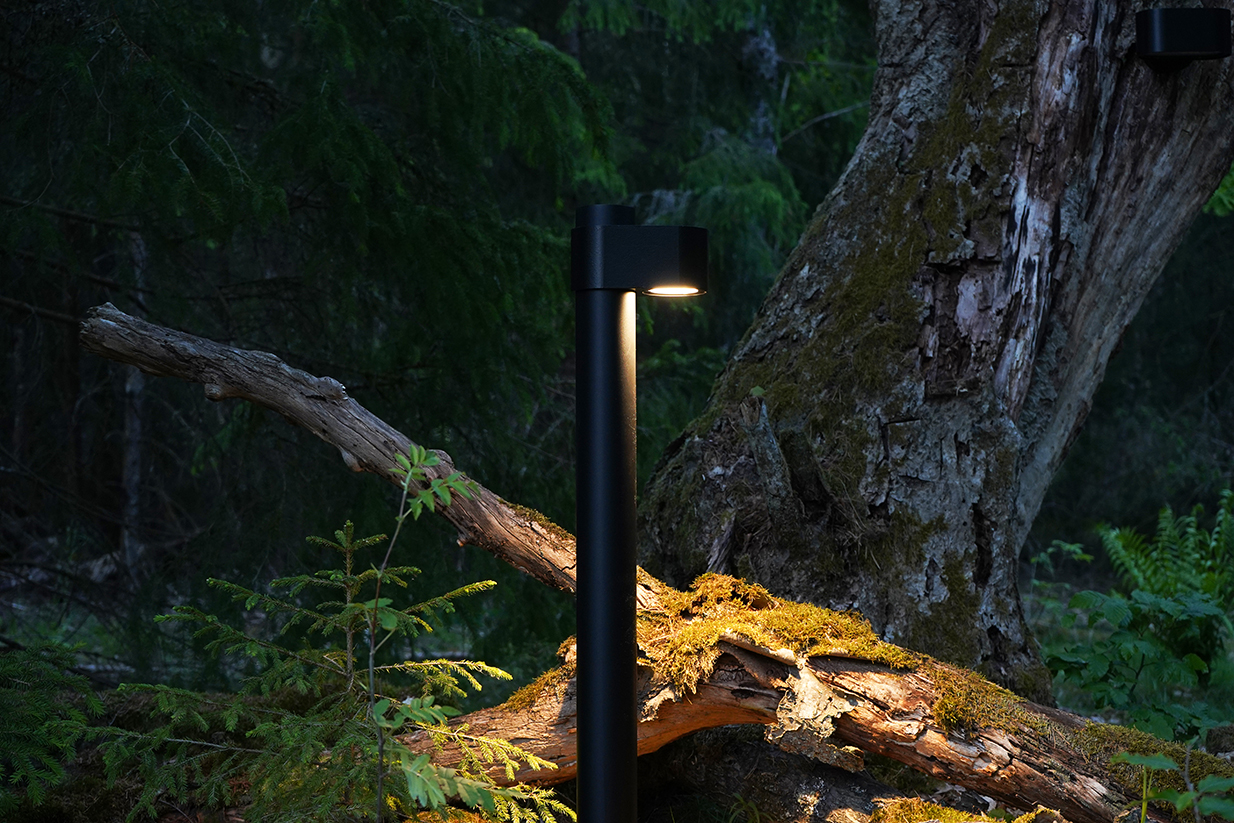

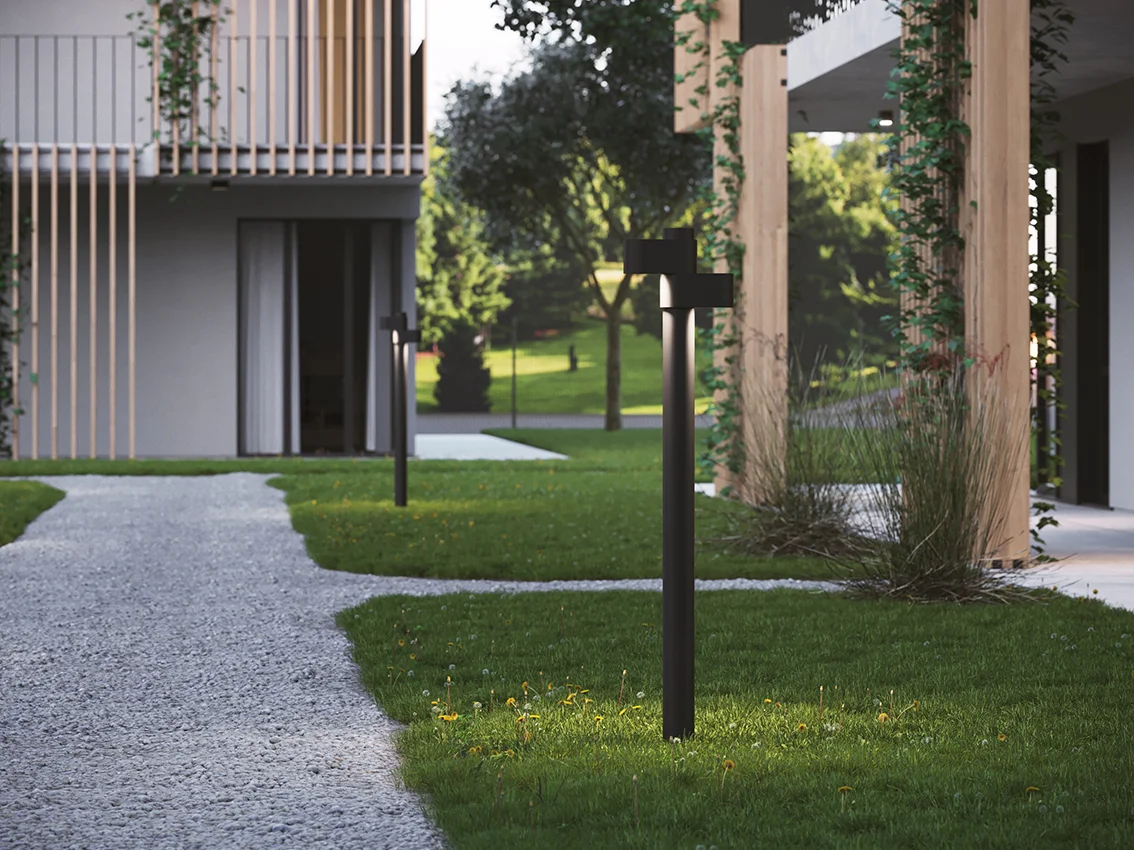

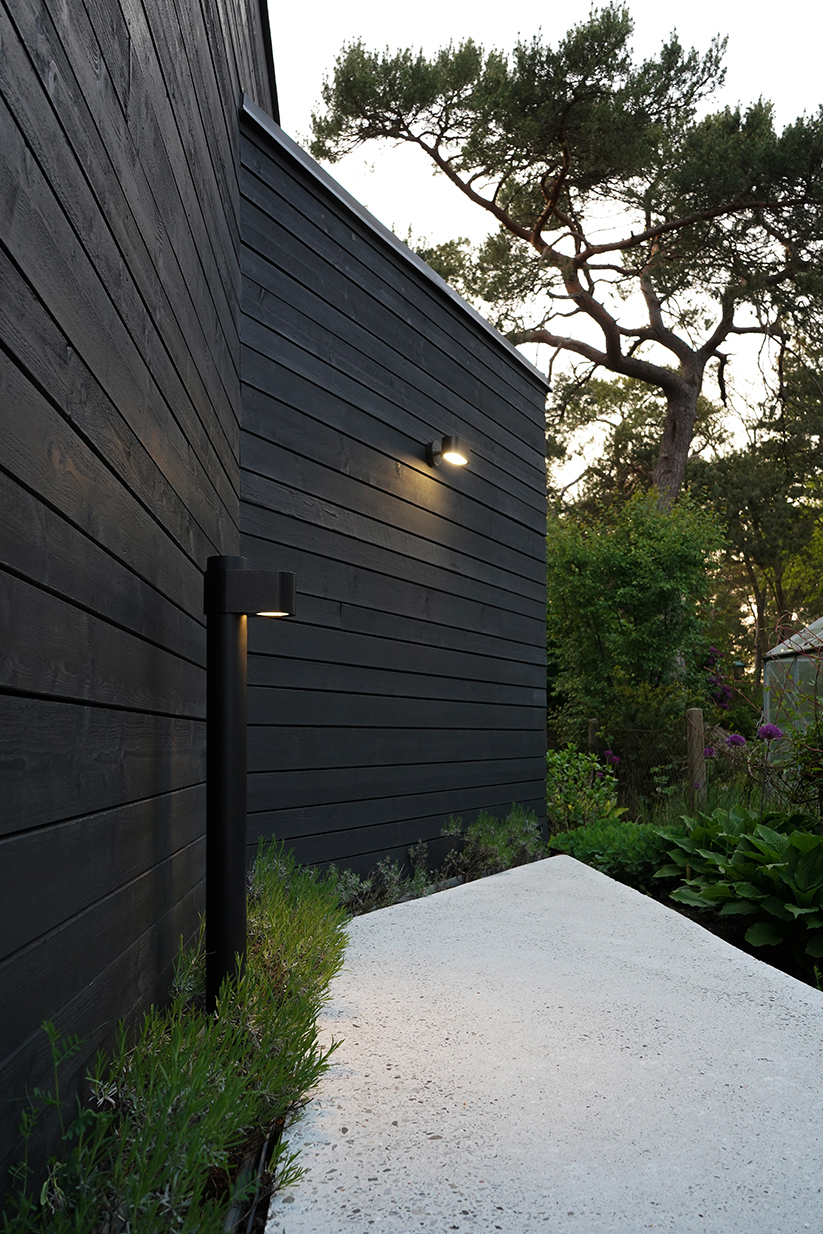

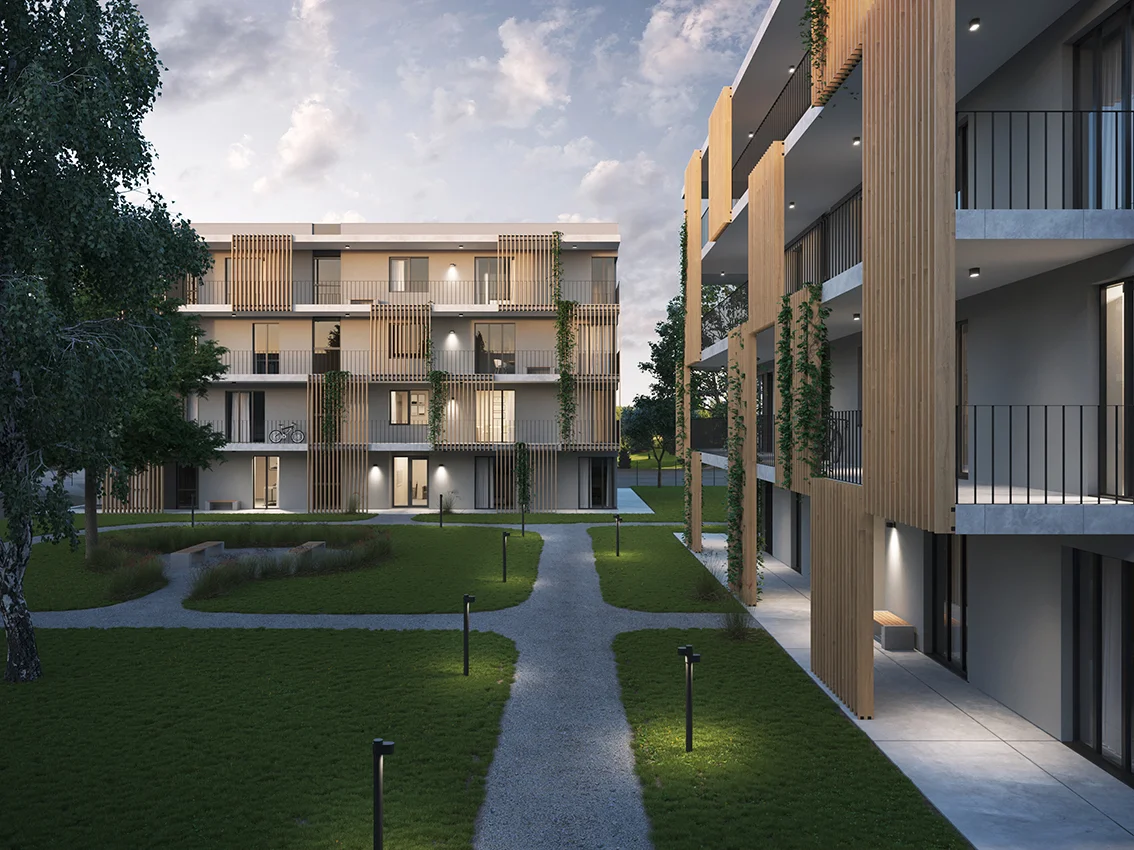

			An easy to place, sculptural family of fixtures designed to illuminate thoroughfares, pathways, facades and areas under roofs. The neat scale and moderate presentation is inspired by signposts of olden times and Pathfinder creates direction and defines place in a very effective manner. The bollards have one or more heads in various combinations and directions. IP 65.

				POWER
				LUMINAIRE FLUX
				KELVIN
				CRI
				Color
				Model
				ART.

					Bollard for ground installation symmetrical

					10W
					430LM
					3000K
					90
					Black
					Bollard single
					13005106-30

					10W
					430LM
					3000K
					90
					Corten
					Bollard single
					13005147-30

					Bollard for ground installation asymmetrical

					10W
					480LM
					3000K
					90
					Black
					Bollard single
					13006106-30

					10W
					480LM
					3000K
					90
					Corten
					Bollard single
					13006147-30

					Bollard for surface mounting symmetrical

					10W
					430LM
					3000K
					90
					Black
					Bollard single
					13007106-30

					10W
					430LM
					3000K
					90
					Corten
					Bollard single
					13007147-30

					Bollard for surface mounting asymmetrical

					10W
					480LM
					3000K
					90
					Black
					Bollard single
					13008106-30

					10W
					480LM
					3000K
					90
					Corten
					Bollard single
					13008147-30

					Extra luminaire head symmetrical

					10W
					430LM
					3000K
					90
					Black
					Luminaire head sym
					13009106-30

					10W
					430LM
					3000K
					90
					Corten
					Luminaire head sym
					13009147-30

					Extra luminaire head asymmetrical

					10W
					480LM
					3000K
					90
					Black
					Luminaire head asym
					13010106-30

					10W
					480LM
					3000K
					90
					Corten
					Luminaire head asym
					13010147-30

Productspecification An easy to place, sculptural family of fixtures designed to illuminate thoroughfares, pathways, facades and areas under roofs. The neat scale and moderate presentation is inspired by signposts of olden times and Pathfinder creates direction and defines place in a very effective manner. The bollards have one or more heads in various combinations and directions. IP 65.
POWER	LUMINAIRE FLUX	KELVIN	CRI	Color	Model	ART.
Bollard for ground installation symmetrical
10W	430LM	3000K	90	Black	Bollard single	13005106-30
10W	430LM	3000K	90	Corten	Bollard single	13005147-30
Bollard for ground installation asymmetrical
10W	480LM	3000K	90	Black	Bollard single	13006106-30
10W	480LM	3000K	90	Corten	Bollard single	13006147-30
Bollard for surface mounting symmetrical
10W	430LM	3000K	90	Black	Bollard single	13007106-30
10W	430LM	3000K	90	Corten	Bollard single	13007147-30
Bollard for surface mounting asymmetrical
10W	480LM	3000K	90	Black	Bollard single	13008106-30
10W	480LM	3000K	90	Corten	Bollard single	13008147-30
Extra luminaire head symmetrical
10W	430LM	3000K	90	Black	Luminaire head sym	13009106-30
10W	430LM	3000K	90	Corten	Luminaire head sym	13009147-30
Extra luminaire head asymmetrical
10W	480LM	3000K	90	Black	Luminaire head asym	13010106-30
10W	480LM	3000K	90	Corten	Luminaire head asym	13010147-30

3d dwg

Pathfinder Bollard
