Pathfinder

Finish

Painted casted aluminum. Diffuser in microprisma.

LED info

System power 14W. Luminaire luminous flux 865LM. CCT 3000K. SDCM 3. CRI>80. L80 B50 50.000h.

Installation

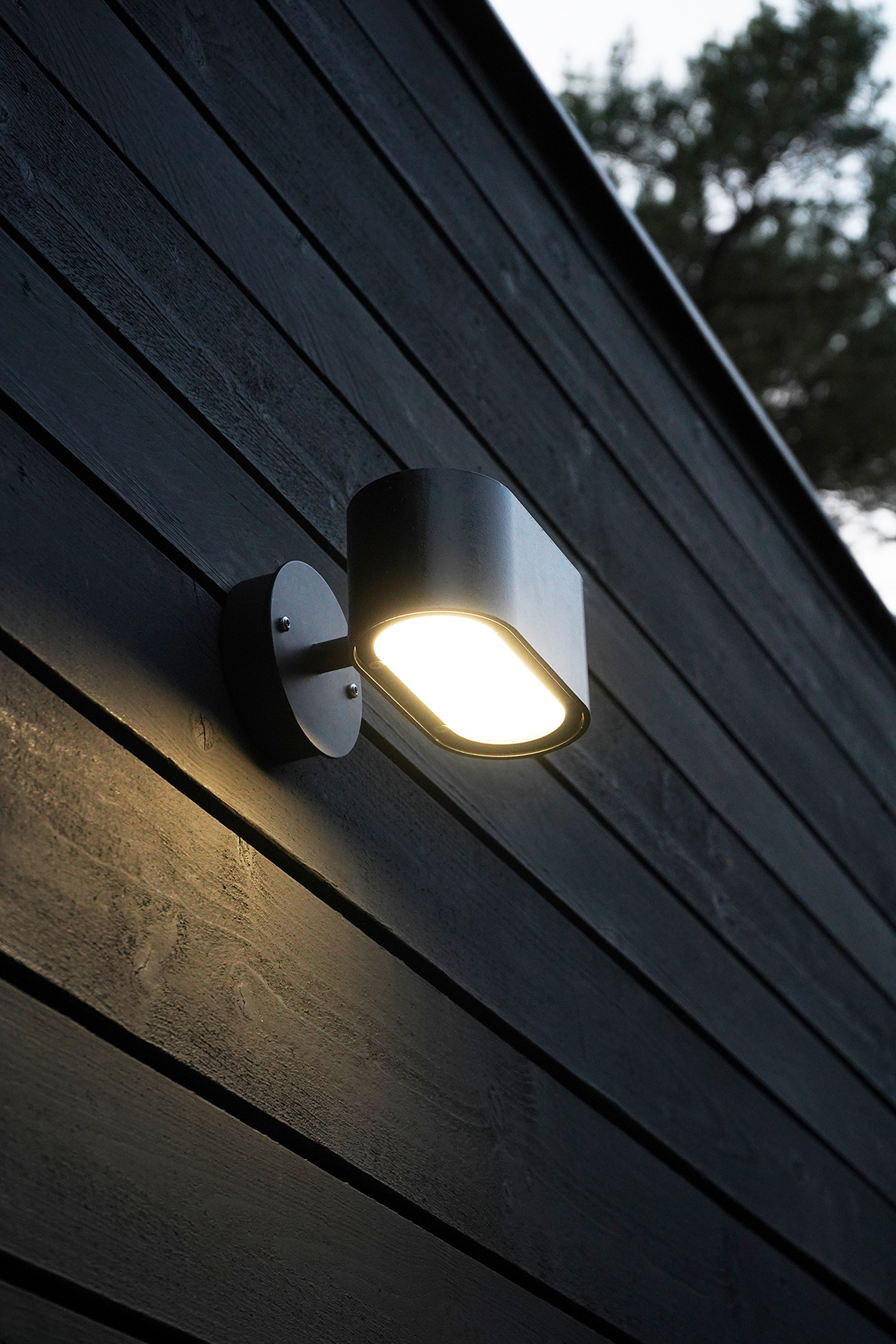

Surface mounted wall installation.

Connection

On/off model: Possible with double conduit entry. Terminal block 3x2,5mm2.
Dimmable model: Double conduit entry not possible. Terminal block 5x2,5mm2.

Classification

IK 10, IP 65.

Design

Kauppi & Kauppi 2019.

Standard colours

Other colours on request.

product sheet



			Product specification

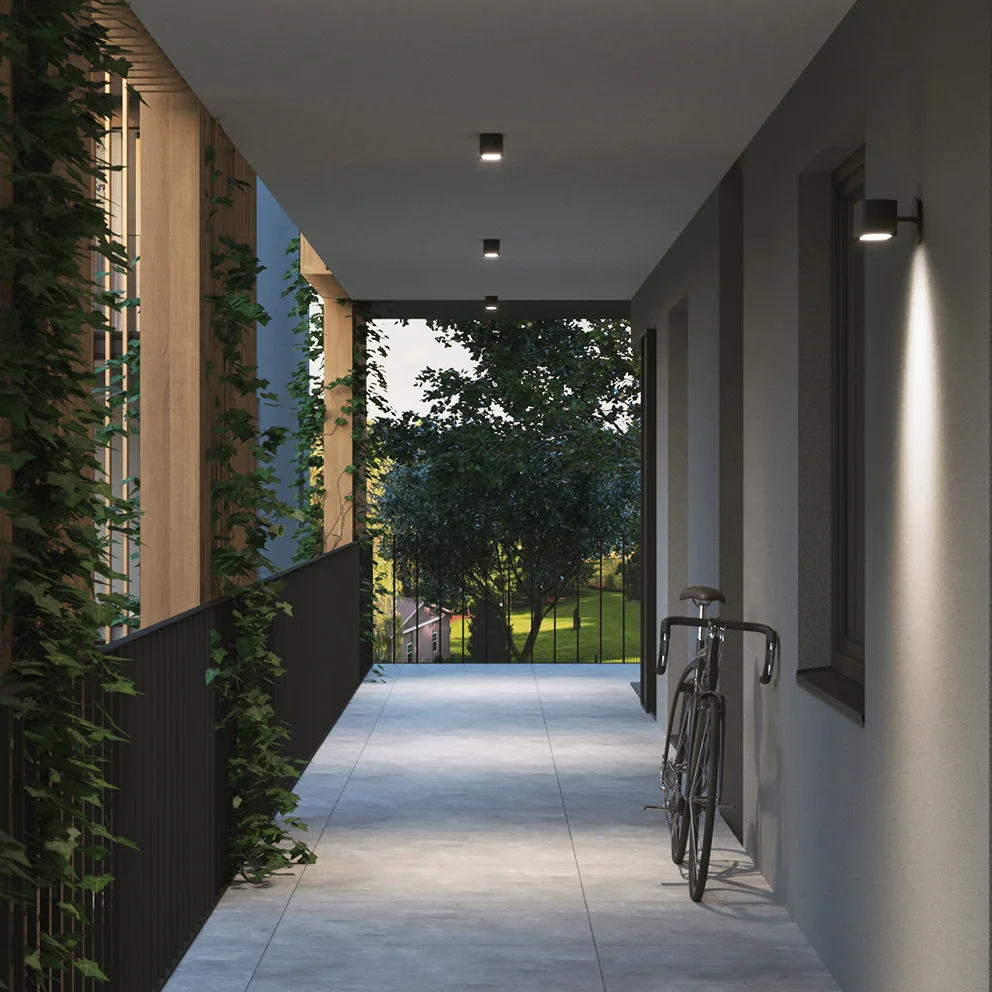

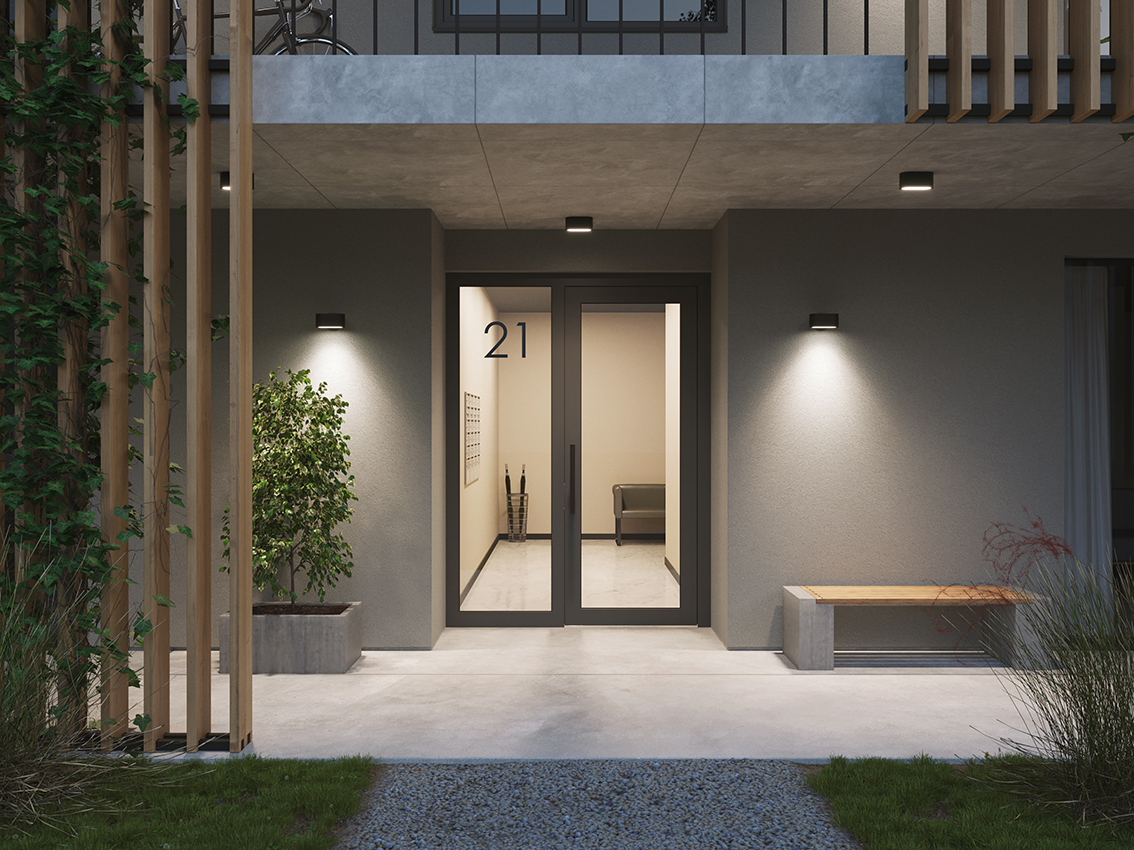

			An easy to place, sculptural family of fixtures designed to illuminate thoroughfares, pathways, facades and areas under roofs. The neat scale and moderate presentation is inspired by signposts of olden times and Pathfinder creates direction and defines place in a very effective manner.  IP65 With inbuilt LED module.


				POWER
				LUMINAIRE FLUX
				KELVIN
				CRI
				Color
				Model
				ART.



					14W
					865LM
					3000K
					>80
					Black
					Wall
					13002106-30


					14W
					865LM
					3000K
					>80
					Black
					Wall
					13002106D30


					14W
					865LM
					3000K
					>80
					Corten
					Wall
					13002147-30


					14W
					865LM
					3000K
					>80
					Corten
					Wall
					13002147D30


					D = Dimmable DALI










Product specification An easy to place, sculptural family of fixtures designed to illuminate thoroughfares, pathways, facades and areas under roofs. The neat scale and moderate presentation is inspired by signposts of olden times and Pathfinder creates direction and defines place in a very effective manner. IP65 With inbuilt LED module.
POWER	LUMINAIRE FLUX	KELVIN	CRI	Color	Model	ART.
14W	865LM	3000K	>80	Black	Wall	13002106-30
14W	865LM	3000K	>80	Black	Wall	13002106D30
14W	865LM	3000K	>80	Corten	Wall	13002147-30
14W	865LM	3000K	>80	Corten	Wall	13002147D30
D = Dimmable DALI

3d dwg

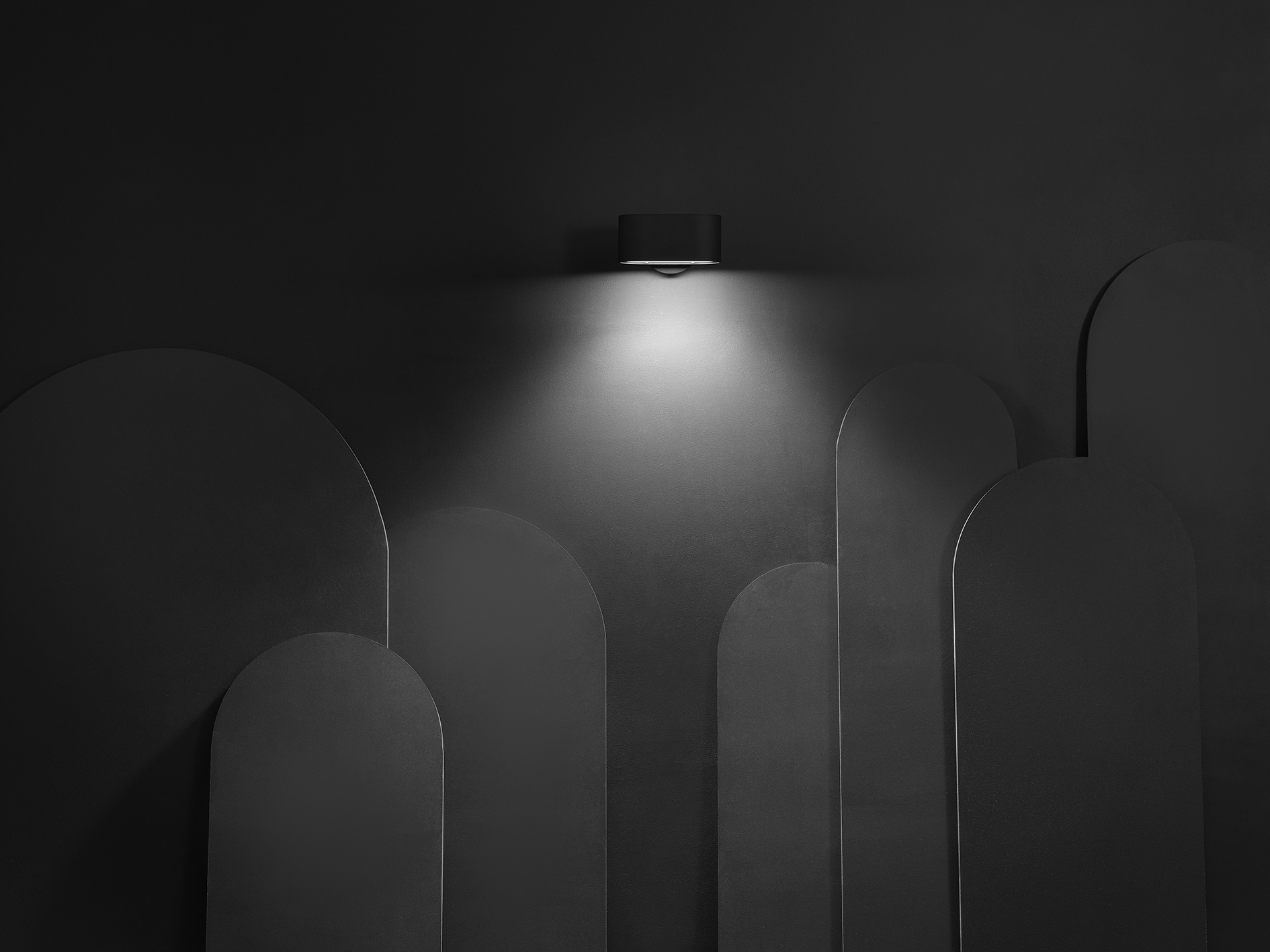

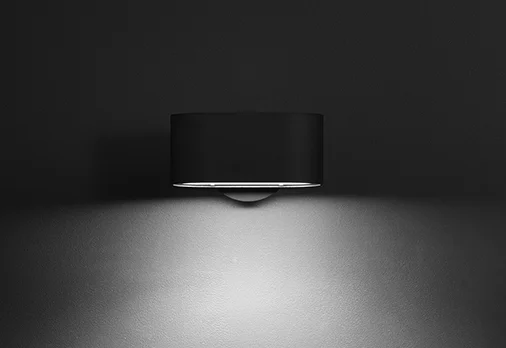

Pathfinder Wall
