Slizes

Finish

Painted metal in black. Sound absorbing slices made of polyester and bi-component fibre. Fabric Hush/Gabriel. Can be ordered with 2-, 3-, or 4 layer slices. Minimum 2 slices (position A + B dellivered as standard). The slices are two-coloured, one colour on each side.

LED info

System Power 11W. Luminaire Luminous Flux 884LM. CCT 3000K. SDCM 3. CRI>90. L70 50 000h. GU10-socket avalible as option (see product specification).

Installation

Suspended through cable.

Connection

2 m cable with DCL plug or terminalblock 3x4 mm2. DALI version 5x4mm2.

Classification

IP 20.

Design

Halskov & Dalsgaard 2022.

Standard colours slice B

Other colours on request.



Standard colours slice A, C & D

Other colours on request

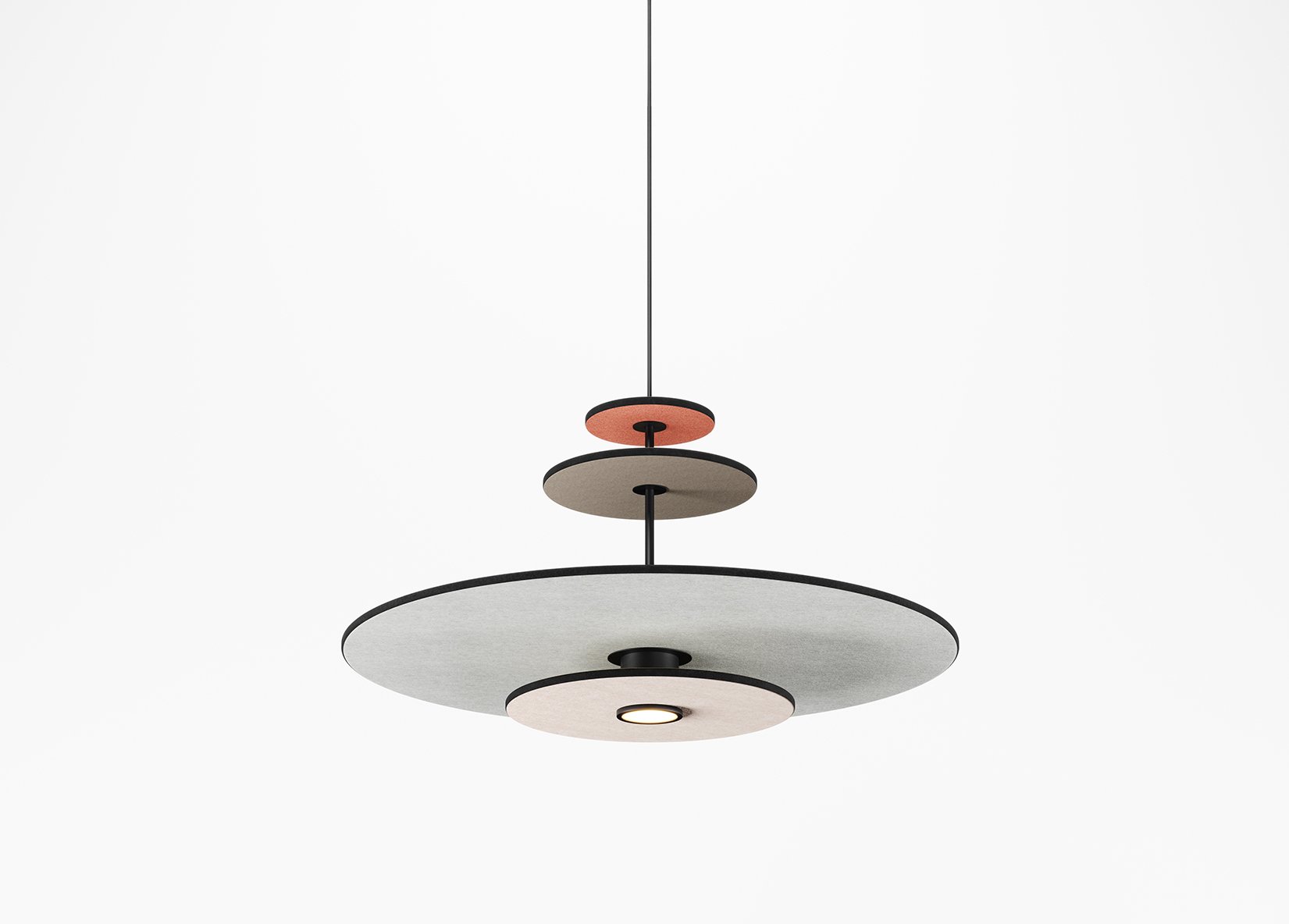

Product specification Two functions in one and the same fixture; Slizes is nothing less than a light-emitting, acoustic design object that combines innovative functionality with expressive form. Sustainability was a crucial factor in the development phase, both in terms of materials and socially. Slizes literally creates a better environment, for both the eyes and ears, and adds character with its softly toned colour spectra.
POWER LUMINAIRE FLUX MODEL KELVIN CRI COLOUR ART.
11W 884LM On/Off 3000K >90 Black 12120106-30
11W 884LM DALI 3000K >90 Black 12120106D30
Including dimmable GU10 light source
4,9W/6,2W 355LM/515LM 2700K/3000K >90 Black 12121106
Light source GU10
4,9W/GU10 355LM 2700K >90 L70073
6,2W/GU10 515LM 3000K >90 L70074
Soundabsorbing slices POSITION Colour from below Colour from above ART.
Position A
Diameter 375 mm A 60155 Light grey 60900 Dark grey S60155-A
Diameter 375 mm A 60900 Dark grey 60155 Light grey S60900-A
Diameter 375 mm A 64148 Pink 62068 Yellow S64148-A
Diameter 375 mm A 62068 Yellow 64148 Pink S62068-A
Diameter 375 mm A 68160 Green 61174 Beige S68160-A
Diameter 375 mm A 61174 Beige 68160 Green S61174-A
Diameter 375 mm A 63058 Redorange 61176 Brown S63058-A
Diameter 375 mm A 61176 Brown 63058 Redorange S61176-A
Diameter 375 mm A 61226 Light beige 61225 Brownbeige S61226-A
Diameter 375 mm A 61225 Brownbeige 61226 Light beige S61225-A
Diameter 375 mm A 67046 Blue 66169 Light blue S67046-A
Diameter 375 mm A 66169 Light blue 67046 Blue S66169A S66169-A
Position B
Diameter 580 mm B 60155 Light grey 60900 Dark grey S60155-B1
Diameter 580 mm B 60900 Dark grey 60155 Light grey S60900-B1
Diameter 800 mm B 60155 Light grey 60900 Dark grey S60155-B3
Diameter 800 mm B 60900 Dark grey 60155 Light grey S60900-B3
Position C
Diameter 285 mm C 60155 Light grey 60900 Dark grey S60155-C
Diameter 285 mm C 60900 Dark grey 60155 Light grey S60900-C
Diameter 285 mm C 64148 Pink 62068 Yellow S64148-C
Diameter 285 mm C 62068 Yellow 64148 Pink S62068-C
Diameter 285 mm C 68160 Green 61174 Beige S68160-C
Diameter 285 mm C 61174 Beige 68160 Green S61174-C
Diameter 285 mm C 63058 Redorange 61176 Brown S63058-C
Diameter 285 mm C 61176 Brown 63058 Redorange S61176-C
Diameter 285 mm C 61226 Light beige 61225 Brownbeige S61226-C
Diameter 285 mm C 61225 Brownbeige 61226 Light beige S61225-C
Diameter 285 mm C 67046 Blue 66169 Light blue S67046-C
Diameter 285 mm C 66169 Light blue 67046 Blue S66169-C
Position D
Diameter 170 mm D 60155 Light grey 60900 Dark grey S60155-D
Diameter 170 mm D 60900 Dark grey 60155 Light grey S60900-D
Diameter 170 mm D 64148 Pink 62068 Yellow S64148-D
Diameter 170 mm D 62068 Yellow 64148 Pink S62068-D
Diameter 170 mm D 68160 Green 61174 Beige S68160-D
Diameter 170 mm D 61174 Beige 68160 Green S61174-D
Diameter 170 mm D 63058 Redorange 61176 Brown S63058-D
Diameter 170 mm D 61176 Brown 63058 Redorange S61176-D
Diameter 170 mm D 61226 Light beige 61225 Brownbeige S61226-D
Diameter 170 mm D 61225 Brownbeige 61226 Light beige S61225-D
Diameter 170 mm D 67046 Blue 66169 Light blue S67046-D
Diameter 170 mm D 66169 Light blue 67046 Blue S66169-D
