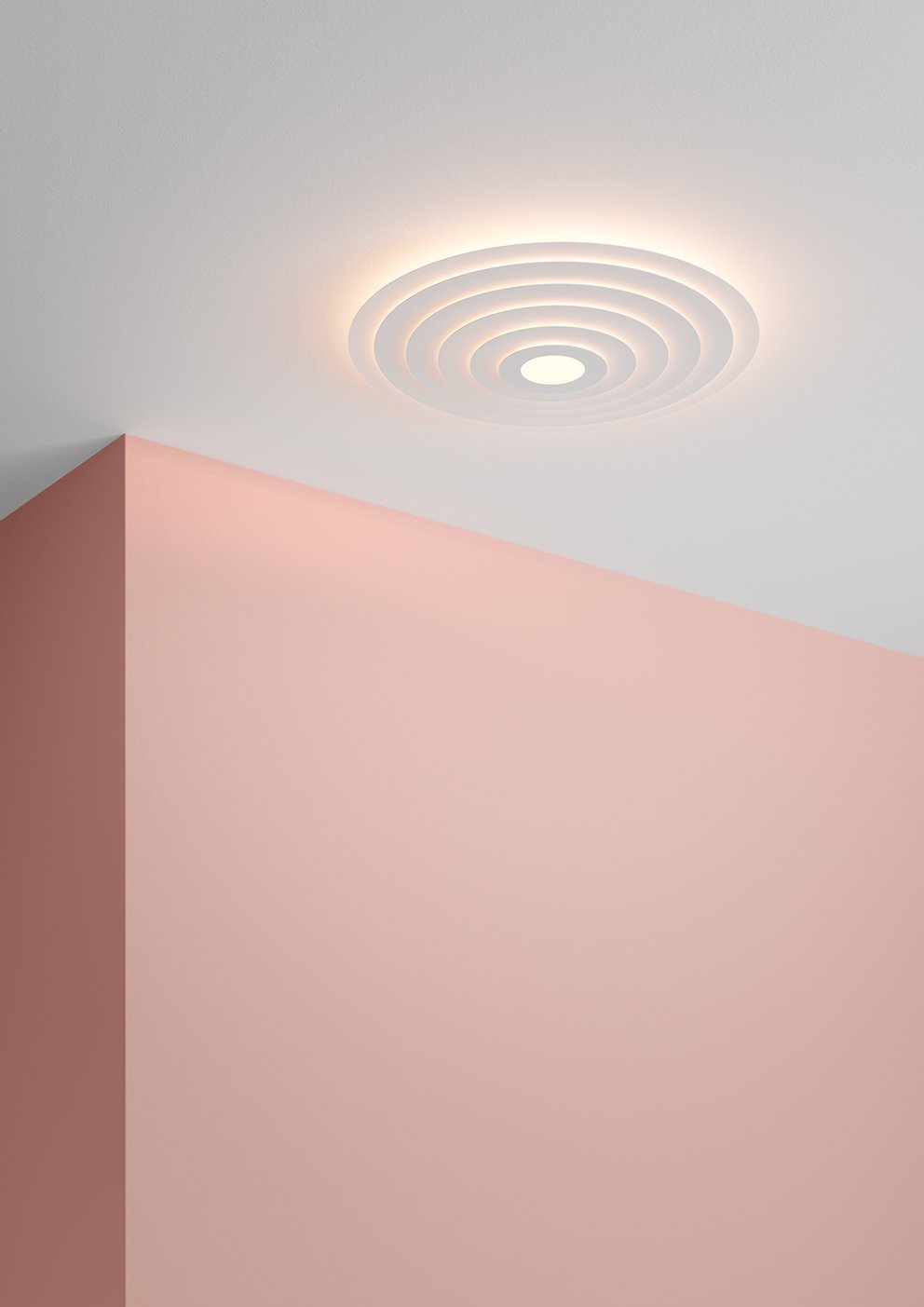

Sprinkle ceiling
Finish
Aluminum and steel. Painted white RAL 9010. Other colours on request. Model 12307 has a microprisma diffuser in the centre for increased direct light.
LED info
System power: 10W, 21W. Luminaire Luminous Flux: see chart. CCT 3000K. SDCM 3. CRI 90. L70/B10 50.000H. Can be delivered with 2700K, 4000K on request.
Installation
Ceiling-installation.
Connection
Terminal block 5x2,5mm2. Two entry holes.
Design
Note Design Studio 2024
POWER/LUMEN | KELVIN | CRI | COLOR | D/mm | ART. | |
---|---|---|---|---|---|---|
With closed centre. Suitable for wall mounting. | ||||||
10W/194LM | 3000K | 90 | White | 280 | On/off | 12306101-30 |
10W/194LM | 3000K | 90 | White | 280 | Dali | 12306101D30 |
21W/380LM | 3000K | 90 | White | 640 | On/off | 12306301-30 |
21W/380LM | 3000K | 90 | White | 640 | Dali | 12306301D30 |
With microprisma centre. Suitable for ceiling mounting. | ||||||
10W/440LM | 3000K | 90 | White | 280 | On/off | 12307101-30 |
10W/440LM | 3000K | 90 | White | 280 | Dali | 12307101D30 |
21W/859LM | 3000K | 90 | White | 640 | On/off | 12307301-30 |
21W/859LM | 3000K | 90 | White | 640 | Dali | 12307301D30 |
