Triad

Finish

Body in painted steel. Rippled diffuser in matte and transparent acrylic.

LED info

System power 6W. Luminaire Luminous Flux 477LM.
CCT: 3000K. SDCM: 3. CRI>90.

Installation

Bolted to ground or foundation Ø108mm.

Connection

In terminal block 5x2,5mm2. Max cable dimension 13mm.

Classification

IK 10, IP 65.

Design

Dalsgaard & Jeppesen 2026.

Standard colours

Other colours on request.




product sheet

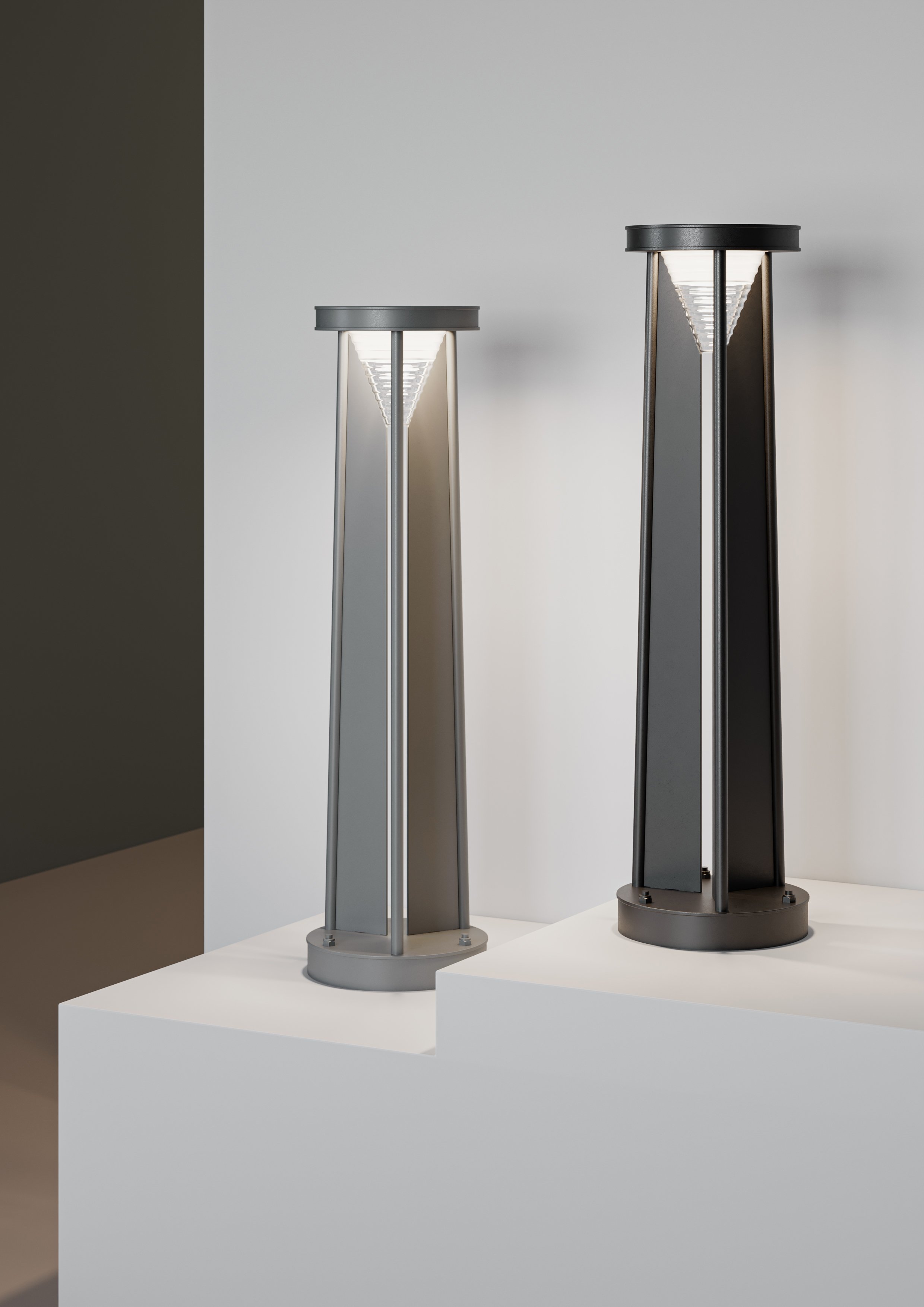

Product specification The designers wanted to work with a triangular form, as it appears different depending on the viewing angle, thereby creating a sense of movement and vitality. The construction is deliberately kept minimal, allowing the semi-transparent element to appear as if it is floating within the structure. The luminaire primarily emits downward-directed, non-glare light. The semi-transparent element is horizontally and subtly profiled, softening the light output and further reducing glare.
POWER CRI KELVIN COLOUR ART.
LED/6W/477LM 90 3000K Black 16100106-30
LED/6W/477LM 90 3000K Grey 16100110-30

Bim - Revit
Bim - Archicad
